2X Anamorphic PL/EF Mount Prime Lenses





2x Anamorphic Prime Lenses



Orion Series 65mm Anamoprhic Shot at T2. Captured on Arri Alexa Mini 4:3



ANamorphic for all of us



At the heart of Atlas Lens Co. Orion Series is a true Front Anamorphic Group. Orion Series lenses deliver the striking beauty of painterly waterfall bokeh, disproportionate breathing, and signature but controlled flare.  These optical characteristics are now available as part of your cinematic storytelling toolkit with a mechanical functionality that that won't leave you feeling confounded by compromise.

Orion Series Anamorphic Lenses are built to be a universal filmmaking tool - ready for the latest Digital Cinema PL mount cameras like Arri Alexa or Red DSMC2, Canon Mount Cinema Cameras like the C300, or adapted Sony E Mount or Micro 4/3 cameras, and are even designed to accommodate the rotating mirror shutter of 35mm Motion Picture Film Cameras following Arri PL Flange requirements. Whether your project requires you to shoot digital or film, the 65mm T2 has the coverage you need and boasts a larger than S35mm Image Circle. (Alexa Open Gate full height Coverage)

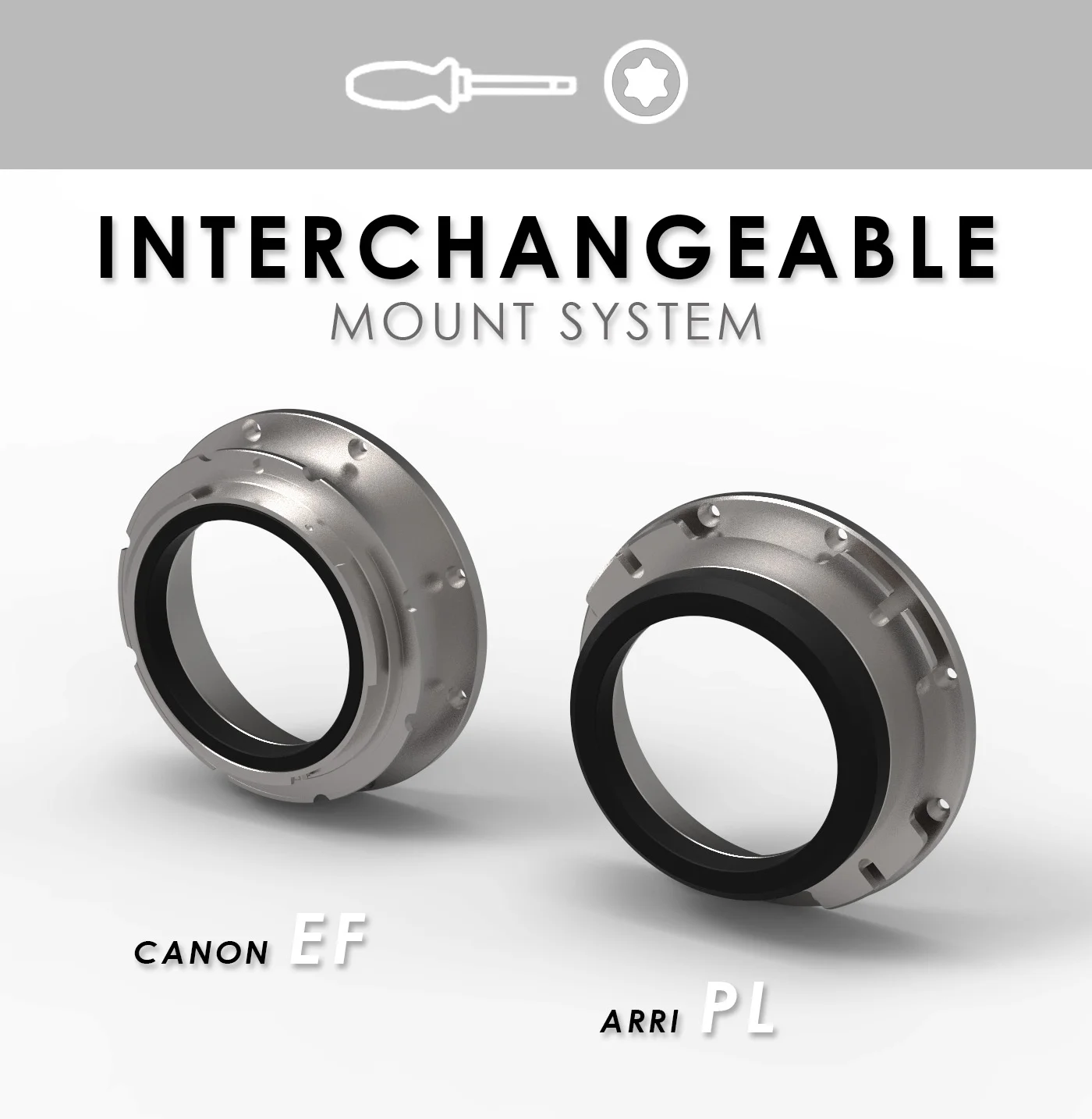

With our Interchangeable Mount System (IMS) you can use Orion Series Anamorphic lenses on any PL Mount camera one day, and any compatible EF,  E-mount, or Micro 4/3 camera with appropriate adapters for your next shoot or second unit. Focus has a deep 270° travel rotation. Cine pitch 0.8 mod gearing on both iris and Focus ring are spaced to allow simultaneous drive control, even when two motors are mounted on the same side of the lens.



We invite you to pre-order as well as meet us in person for a demonstration.




TECHNICAL Specifications

ORION SERIES 2X T2/40mm T2/65mm T2/100mm
Focal Length 40mm 65mm 100mm
T-Stop Range T2-T22 T2-T22 T2-T22
Min Focus (FT/IN) 2.75Ft / 33" 2.75Ft / 33" 3.3Ft / 39"
Min Focus (M/CM) .83m / 83.82 cm .83m/ 83.82 cm 1m / 100.5cm
Weight (lbs) N/A 6.5lbs N/A
Weight (kg) N/A 2.9kg N/A
Length (IN) N/A 8.2 N/A
Length (CM) N/A 21 N/A
Front Ring Diamater 110mm* 110mm* 110mm*
Max Sensor Coverage Alexa Open Gate Alexa Open Gate Alexa Open Gate

*Product Specifications subject to change
