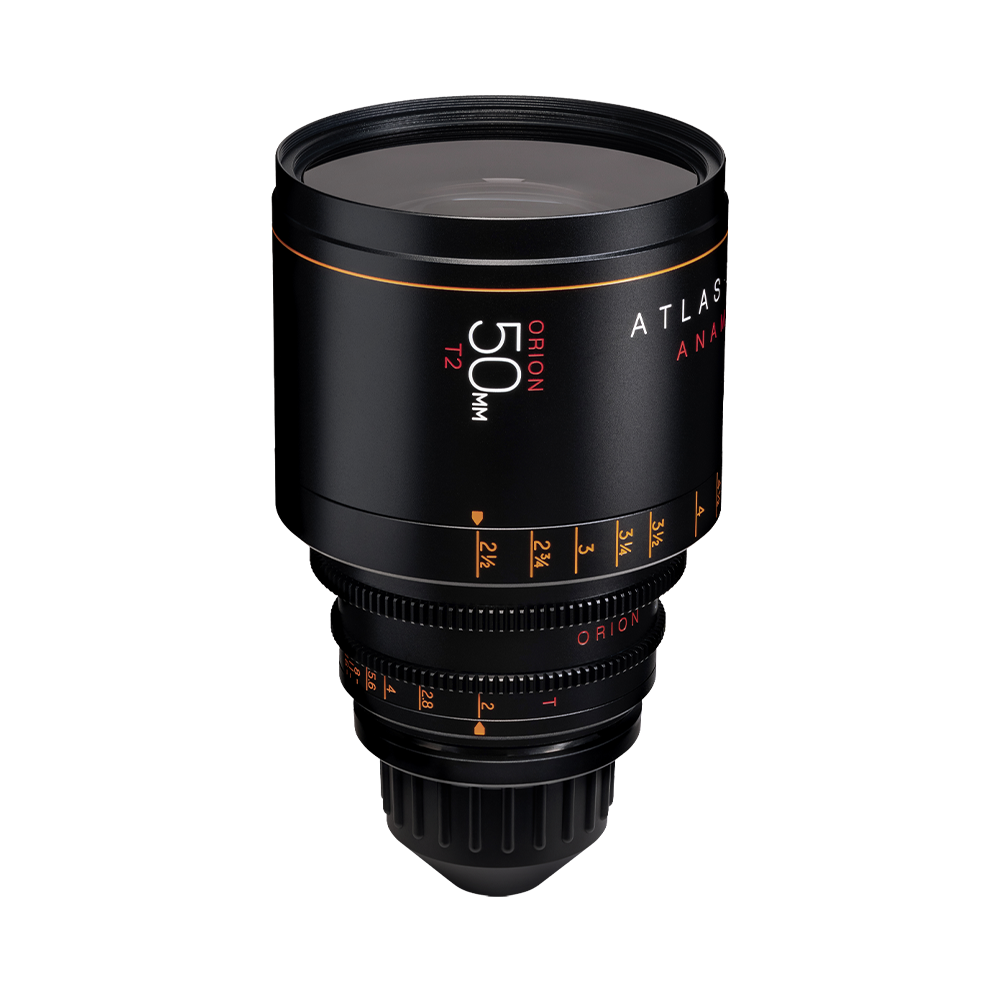

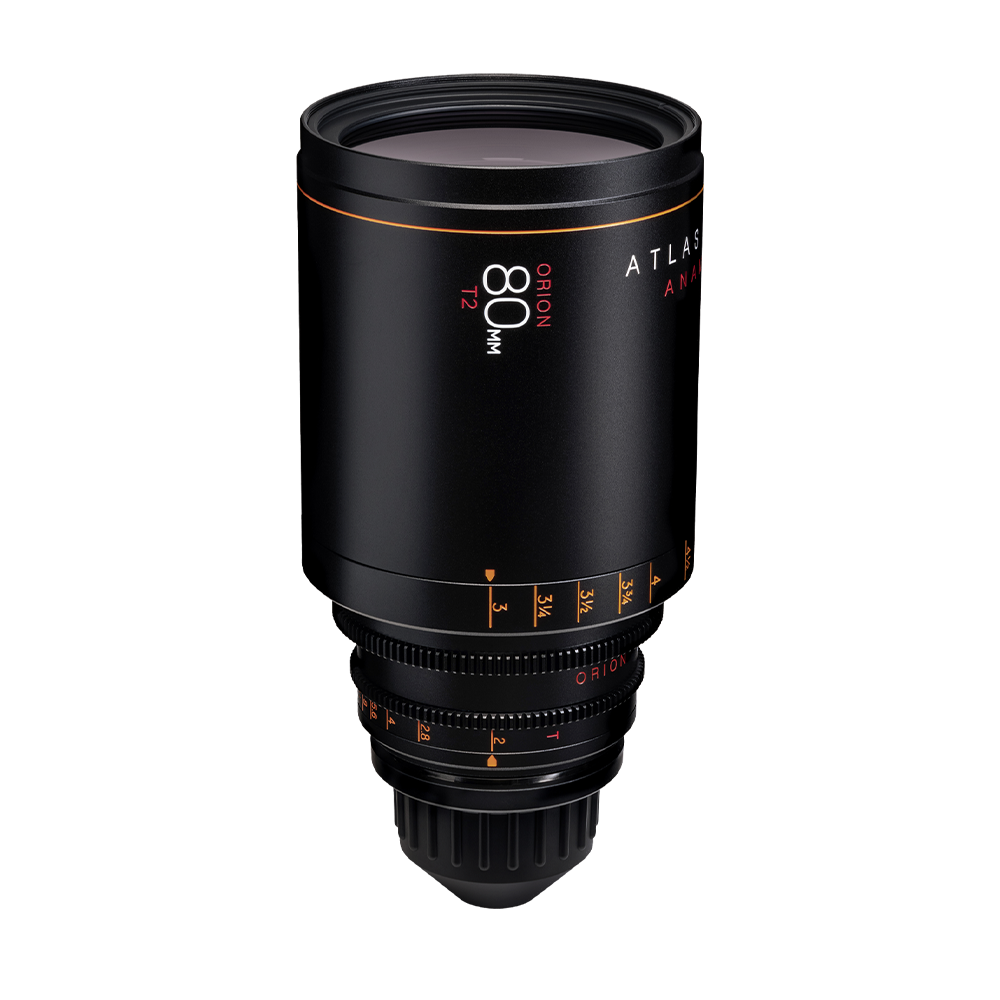

Orion Series B Set 32/50/80

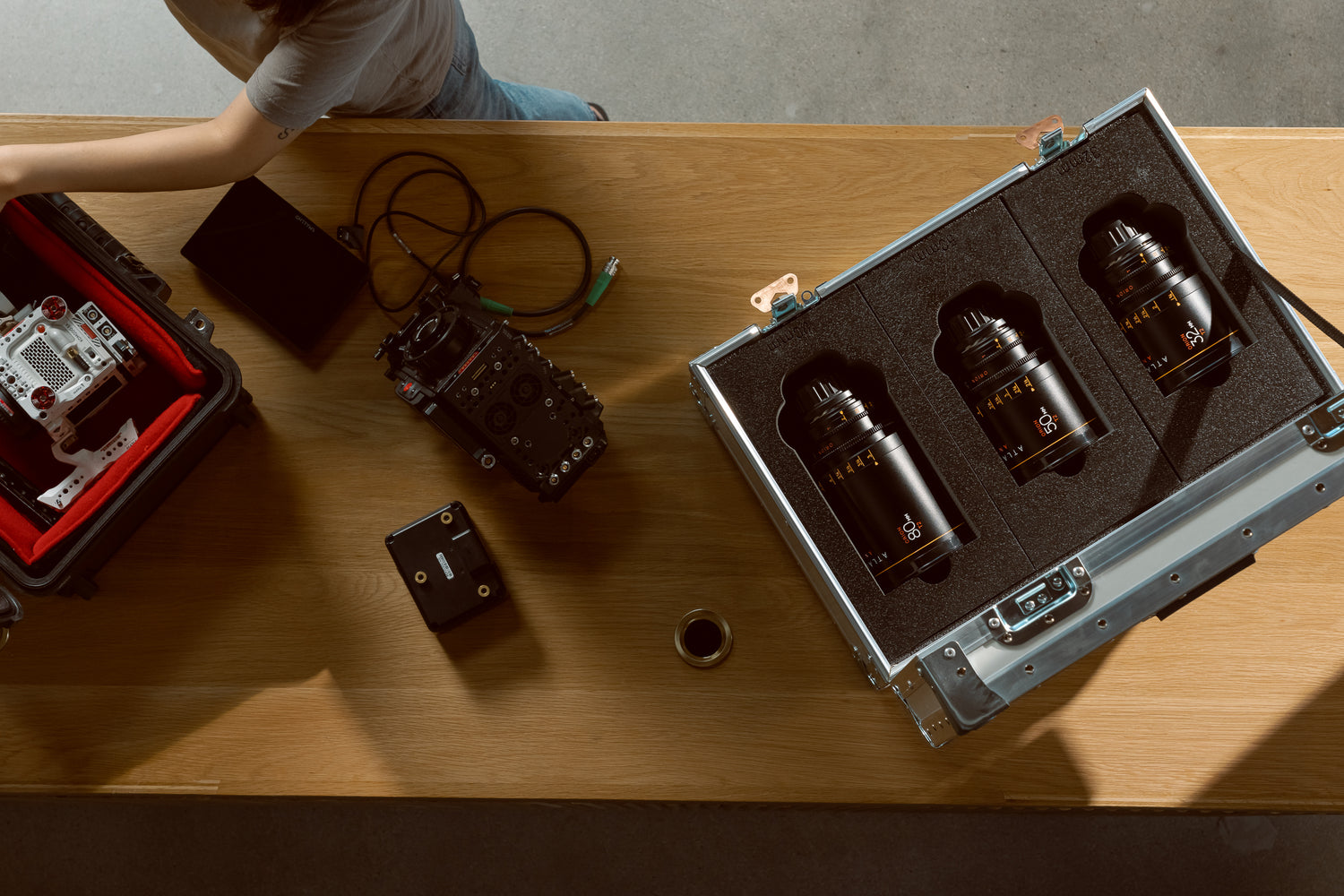

Atlas Lens Co. Orion Series B Set (32/50/80)

Orion Series lenses combine the aesthetic of vintage anamorphic lenses with modern convenience, adaptability, and dependability.

Orion Series 2X anamorphic prime lenses are built to be a universal filmmaking tool — perfect for the latest professional film and digital cinema cameras with native PL mount or just as easily adapted to Canon EF-based cinema cameras.
Price $29,989.00

Financing Available

background image
A UNIVERSAL FILMMAKING TOOL
Vintage anamorphic characteristics
  • Waterfall bokeh Waterfall bokeh
  • Streak flare Streak flare
  • Disproportionate perspective magnification Disproportionate perspective magnification (Telephoto lens with wide-angle field)
  • Pleasant spherical aberration Pleasant spherical aberration glow when wide open
  • Pleasing barrel distortion Pleasing barrel distortion
Modern conveniences
  • Crisp flat-field performance Crisp flat-field performance when stopped down to a T2.8 or deeper
  • Fast T2 aperture Fast T2 aperture
  • Modern, mechanically dependable design Modern, mechanically dependable design (standardized across all 6 focal lengths)
  • Unified focus and iris position Unified focus and iris position (reduces need for adjustment when switching to different focal lengths)
  • Standardized outer diameter Standardized 114mm outer diameter for native use with a variety of matteboxes and filters
Orion Series lenses are convenient, adaptable, dependable, and ergonomic, with the best of both vintage and modern features.
Orion Series lenses are readily and easily compatible with all mirrorless video / stills hybrid cameras via any PL to mirrorless camera adapter.

Whether your project requires you to shoot digital or film, the Orion Series offer the coverage you need with a 24.89mmx18.66mm imaging area and easily covers full frame formats edge-to-edge with the Atlas LF Extender.
Product Details
  • Interchangeable Mount System with native PL or EF mount options
  • Works with E-mount or Micro 4/3 camera with appropriate adapters
  • Covers full-frame (FF), large format (LF) or Vistavision with our 1.6x LF Extender
  • Focus has a deep 270° travel rotation
  • Cine pitch 0.8 mod gearing on both iris and focus ring allow for simultaneous drive control, even when two motors are mounted on the same side of the lens

Deposits are due at checkout with the remaining balance will be invoiced prior to order allocation. All deposits are fully refundable at any time before products are delivered.

Financing available for eligible USA and Canada-based customers.
Learn more
Accessories

Filmed on Atlas

ZERO TWO

DP: Dima Kalenda

FILMED ON

Orion 32mm/50mm + Blackmagic Pocket 6K

Technical Specifications

Download Specs

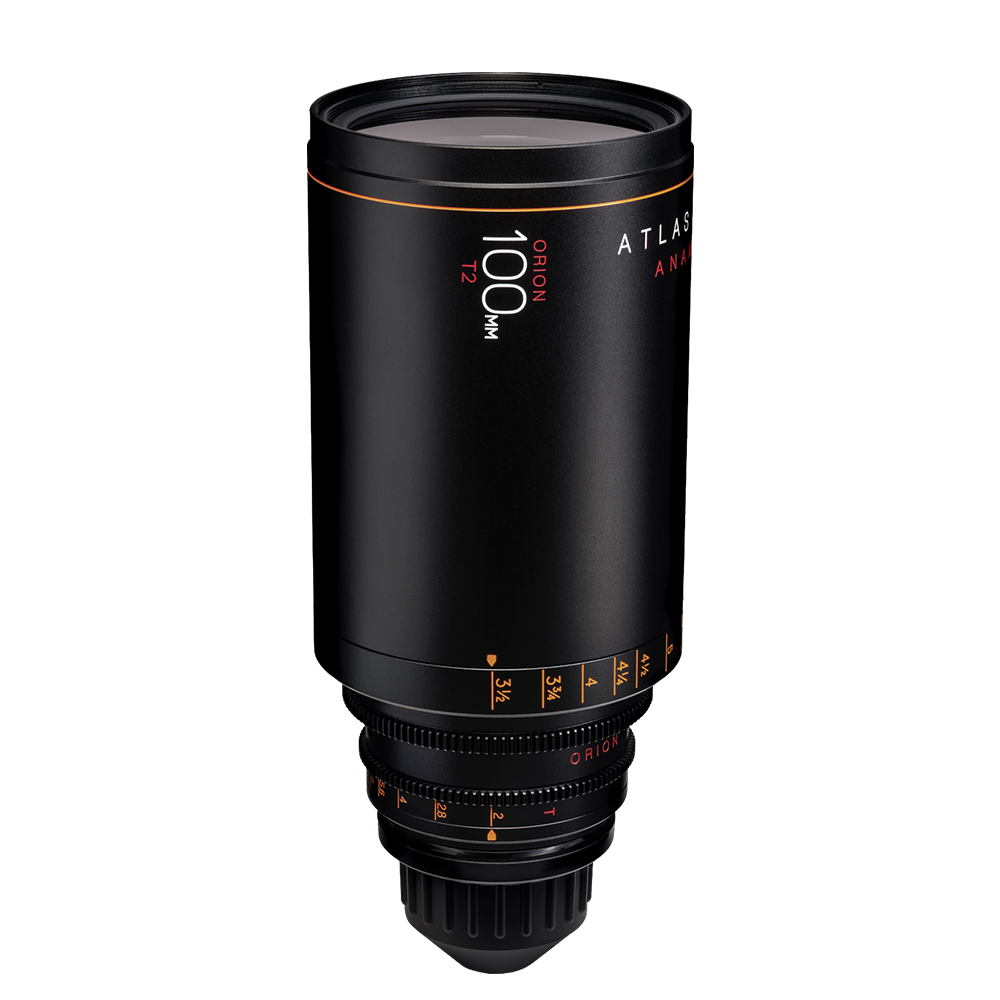

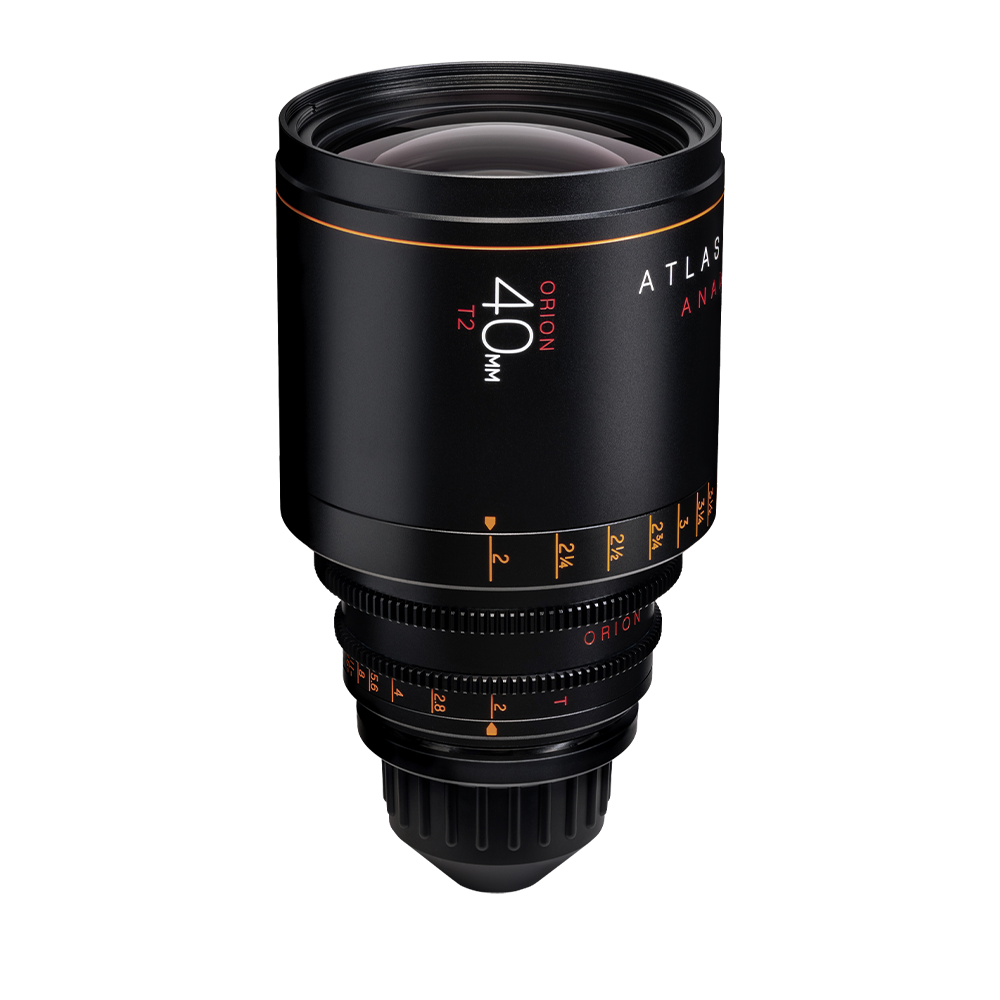

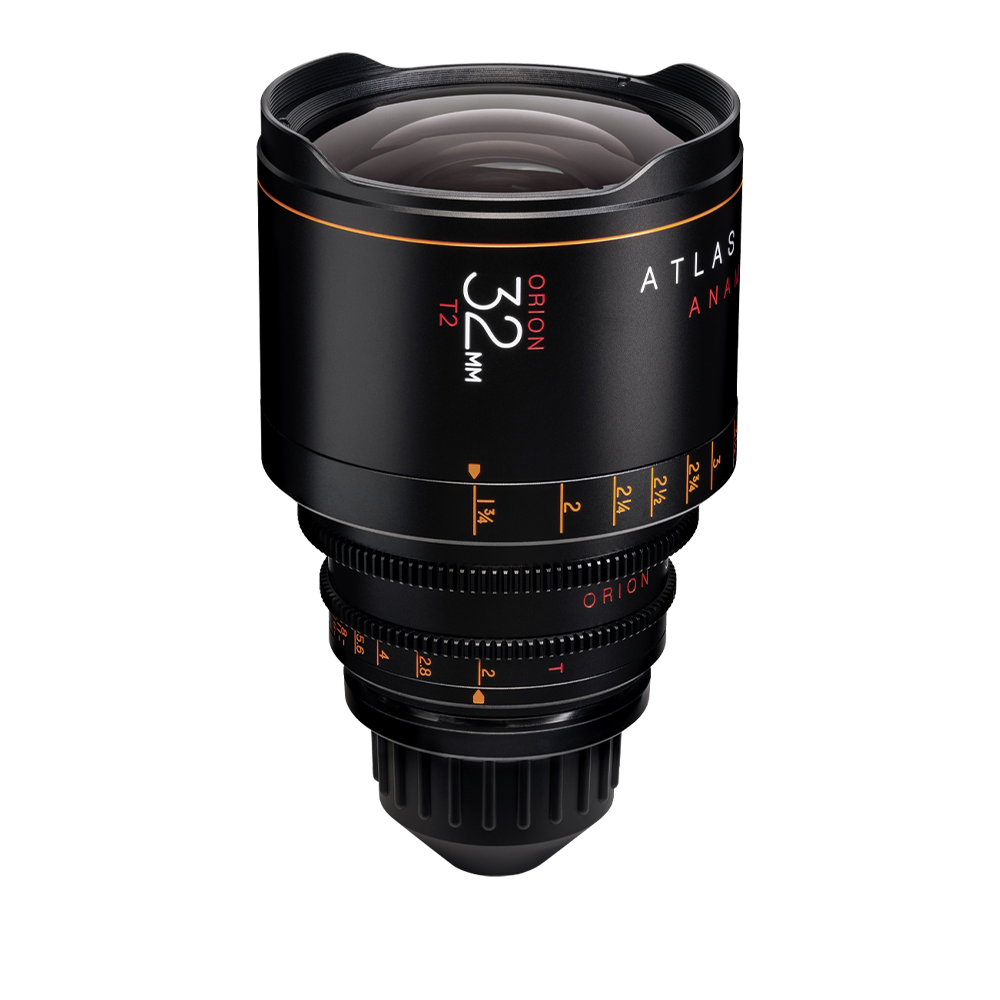

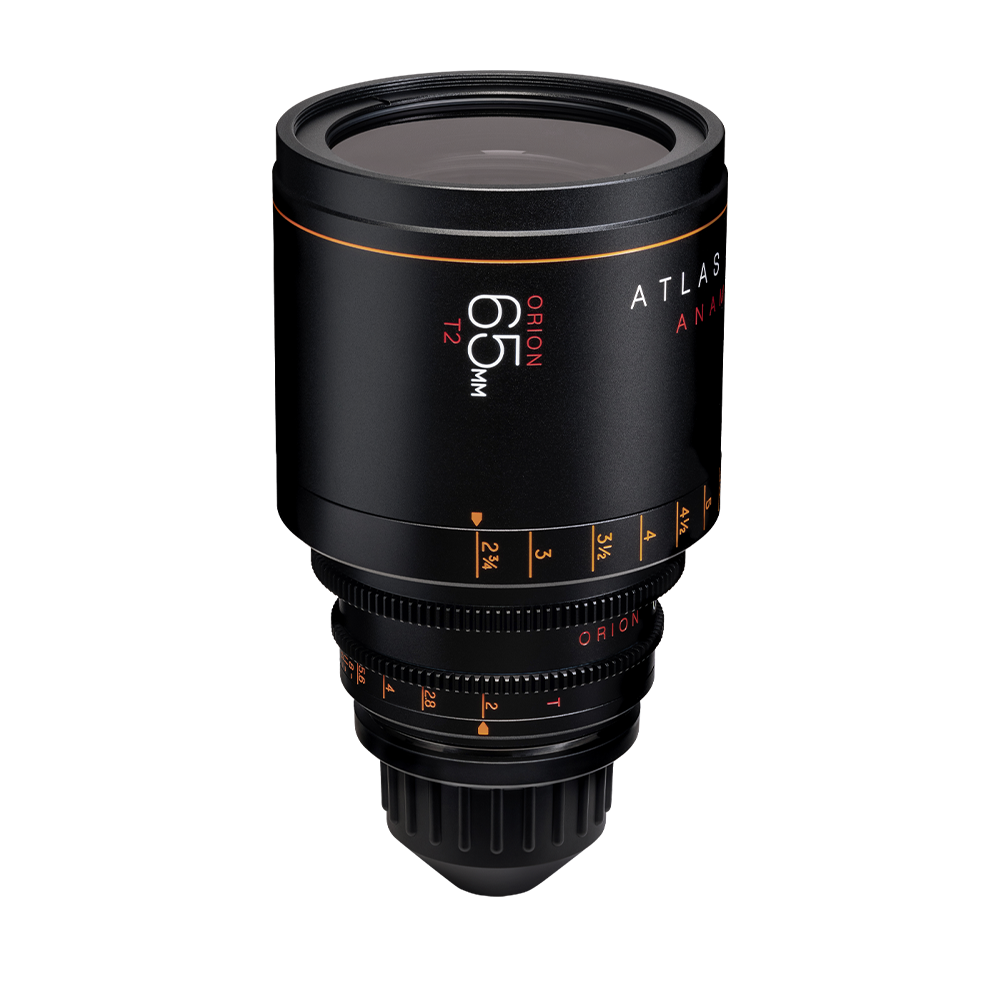

Orion Series 32mm 40mm 50mm 65mm 80mm 100mm
T-Stop RangeT2 - T16T2 - T16T2 - T16T2 - T16T2 - T16T2 - T16
Min Focus (FT)1.75 FT2 FT2.5 FT2.75 FT3 FT3.5 FT
Min Focus (M).53 M.53 M.76 M.84 M.91 M1 M
Weight (LBS)4.7 LBS5.2 LBS5 LBS5 LBS6 LBS6.7 LBS
Weight (KG)2.1 KG2.4 KG2.3 KG2.2 KG2.7 KG3 KG
Length (IN)6.7”7.4”7”7.2”8.5”10”
Length (CM) 17 cm18.9 cm17.8 cm18.4 cm21.5 cm25.4 cm
Front Diameter114 mm114 mm114 mm114 mm114 mm114 mm
Image Circle31 mm31 mm31 mm31 mm31 mm31 mm
