Mercury Series Anamorphic Lenses

Mercury Series Anamorphic Lenses

$9,995.00 USD
$9,995.00 USD
Sale Sold out
Shipping calculated at checkout.
Lens Size
Scale

The Mercury Series Anamorphic Lenses are designed for full-frame cinematographers seeking lightweight and compact lenses with exceptional image quality.

  Featuring a 1.5x squeeze ratio, these lenses deliver stunning anamorphic characteristics like oval bokeh and cinematic flares. With focal lengths ranging from 36mm to 138mm, the Mercury Series offers versatility in capturing everything from wide landscapes to isolated close-ups, making them perfect for both handheld and large-scale digital productions. These lenses provide a perfect blend of artistic control and practical efficiency.

Technical_Specifications

View full details
  • Atlas Lens Co. Mercury Series Logo

Introducing The New Atlas Mercury Series

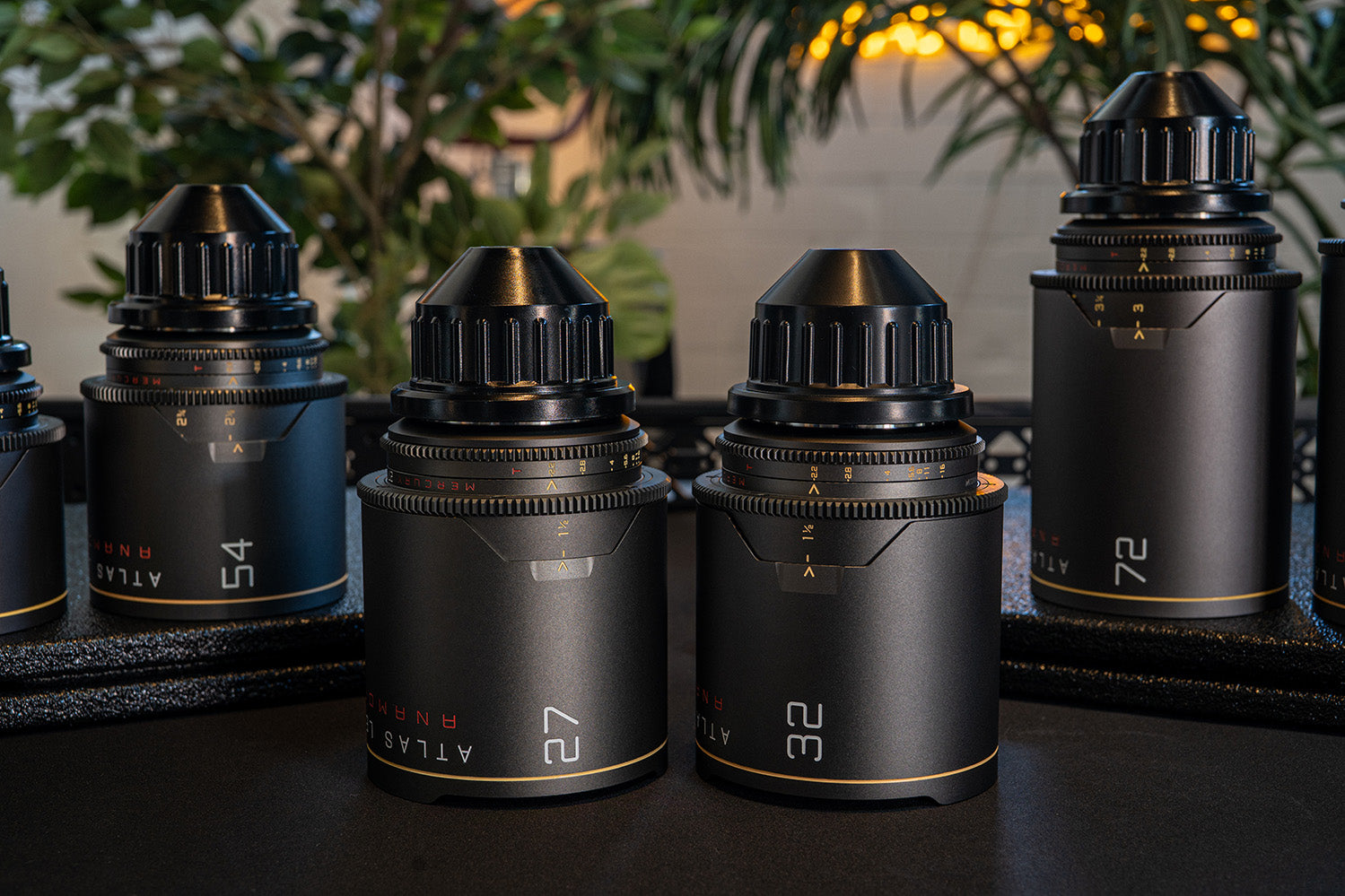

The Lineup

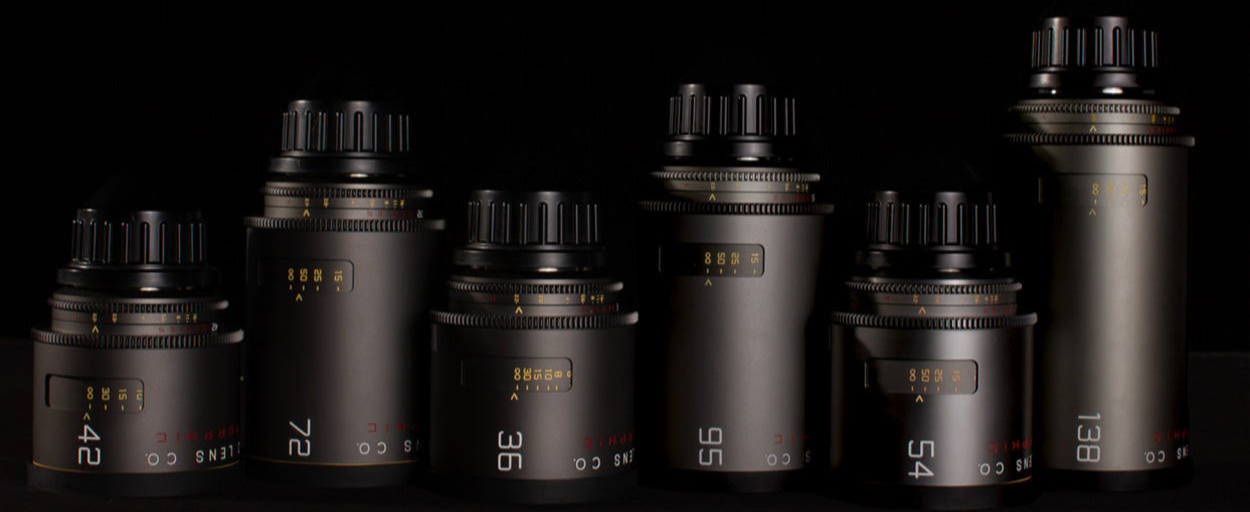

Mercury Series is 6 more lenses of warm, buttery anamorphic goodness -- ready to accompany you on every filmmaking journey imaginable.

  • 24mm

  • 27mm

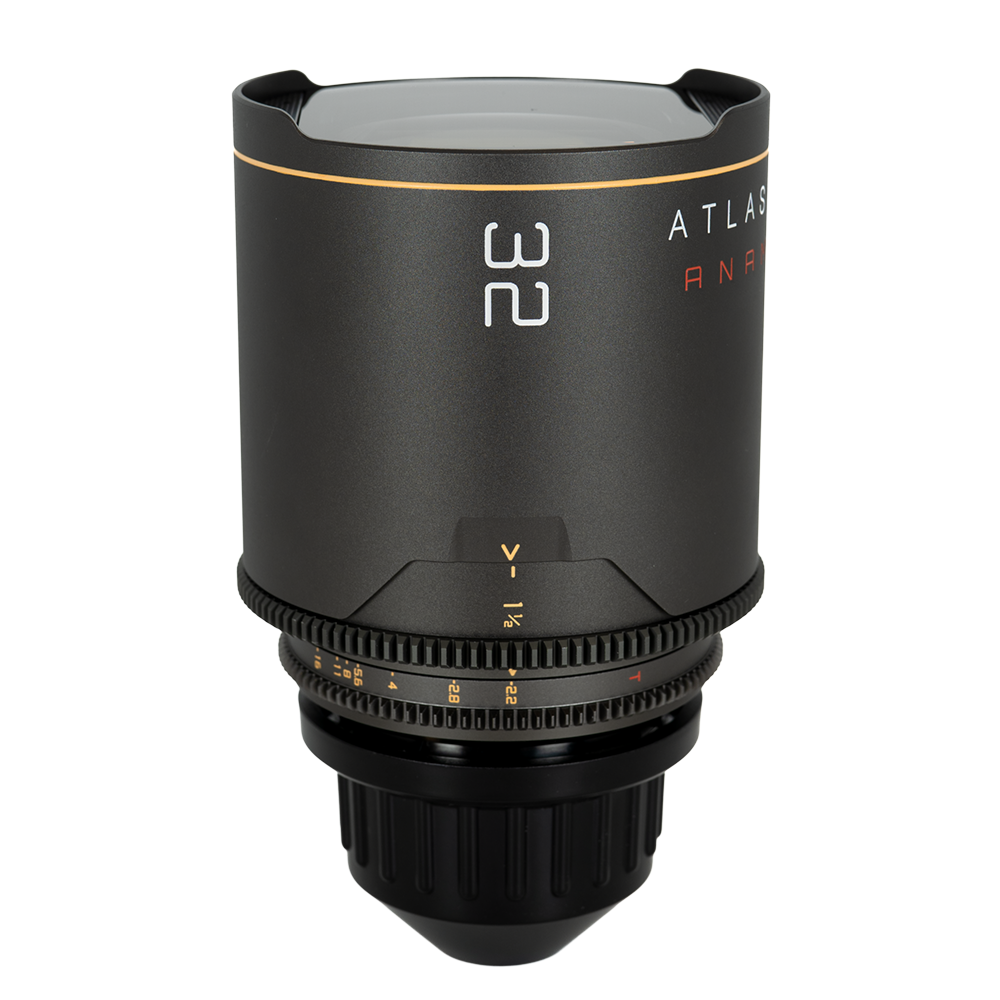

  • 32mm

  • 36mm

  • 42mm

  • 54mm

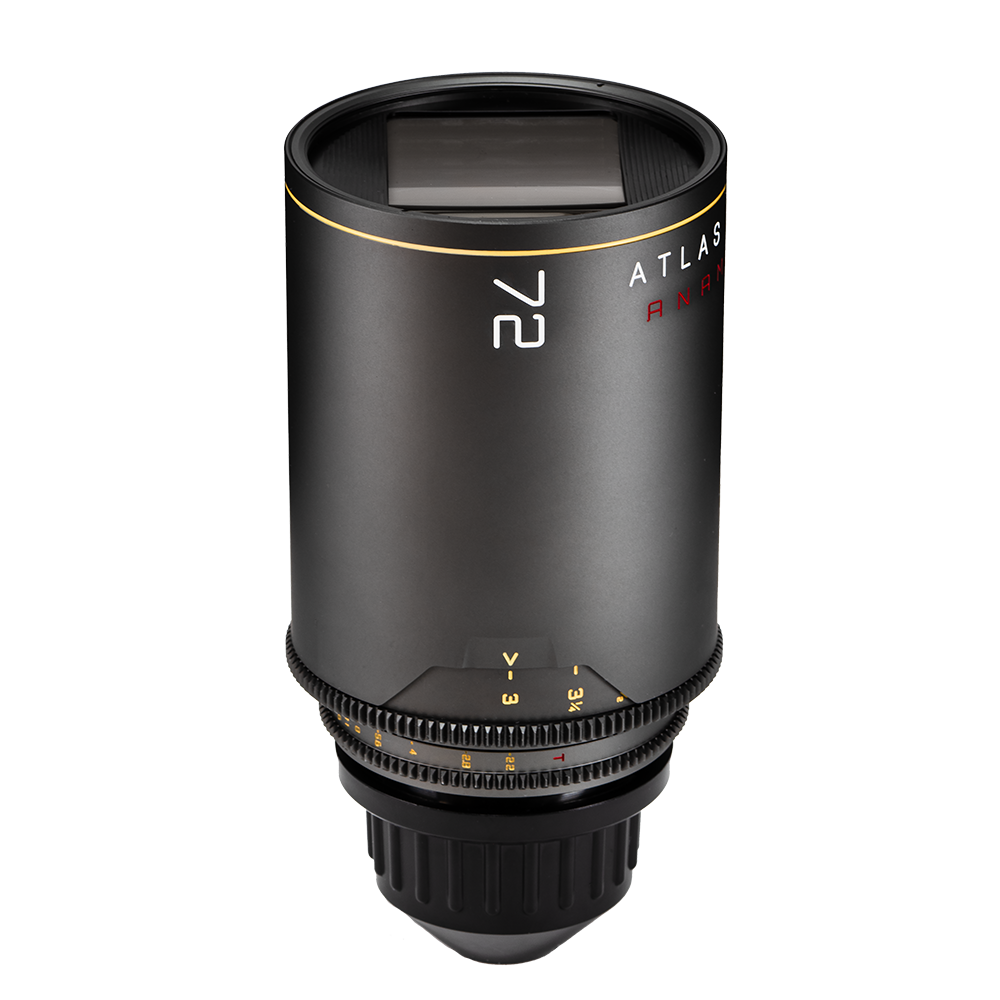

  • 72mm

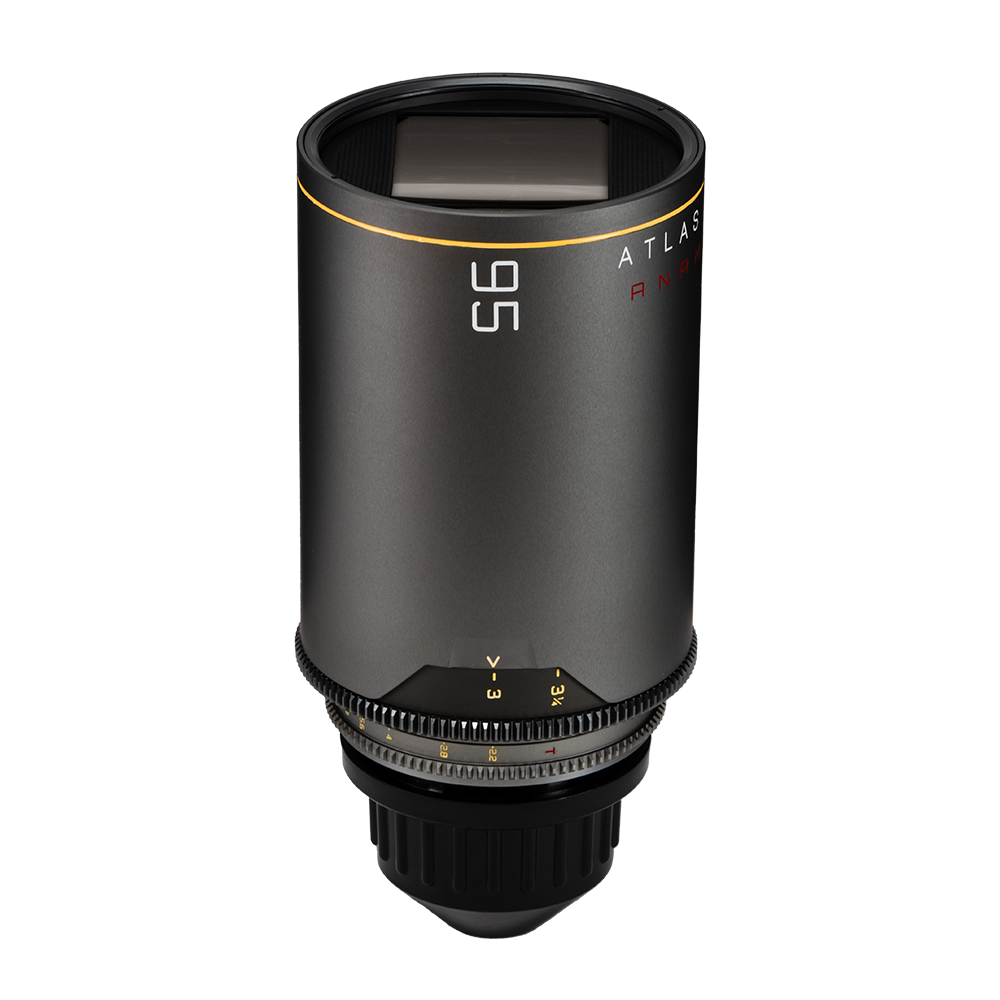

  • 95mm

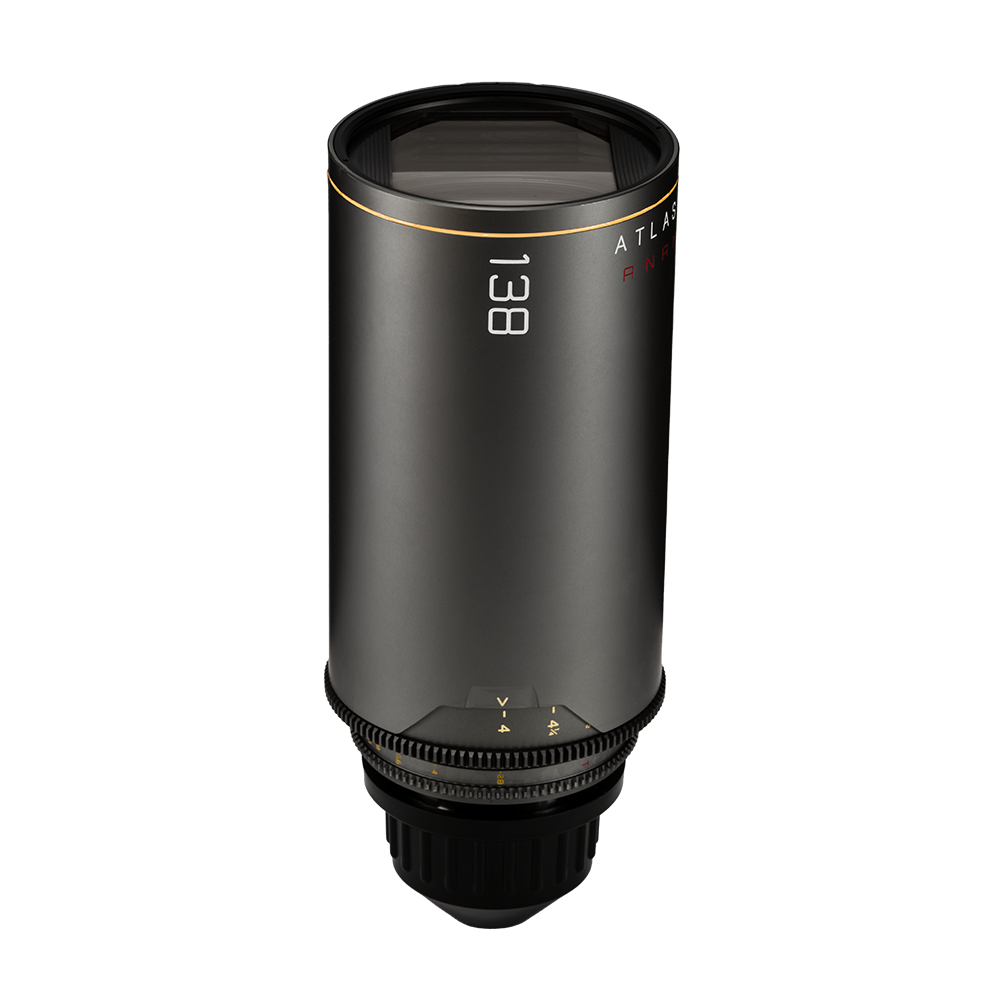

  • 138mm
Focal Length 24mm27mm32mm 36mm42mm54mm72mm95mm138mm
T-Stop Range T2.2 - T16T2.2 - T16T2.2 - T16 T2.2 - T16T2.2 - T16T2.2 - T16T2.2 - T16T2.2 - T16T2.6 - T16
Min Focus 1.5 ft / 0.46 m1.5 ft / 0.46 m1.5 ft / 0.46 m 1.5 ft / 0.46 m2.0 ft / 0.56 m2.5 ft / 0.76 m3.0 ft / 0.91 m3.0 ft / 0.91 m4.0 ft / 1.2 m
Weight 3.85 lbs / 1.75 kg3.25 lbs / 1.47 kg5.38 lbs / 2.44 kg 2.7 lbs / 1.2 kg2.3 lbs / 1.1 kg2.95 lbs / 1.3 kg3.6 lbs / 1.6 kg4.4 lbs / 2.0 kg4.7 lbs / 2.1 kg
Length 5 in / 12.8 cm5.5 in / 13.97 cm5.38 in / 13.67 cm 4.9 in / 12.6 cm4.4 in / 11.2 cm5.0 in / 12.8 cm6.3 in / 16.2 cm6.9 in / 17.6 cm8.1 in / 20.5 cm
Front Diameter 95 mm
Image Circle Full Frame (36.7 mm × 25.54 mm)
Horizontal FOV (Full Frame) 132°117°99° 88°78°60°44°32°23°

Note: Field of view measurement with lens set to Infinity and Full Frame gate (36mm)

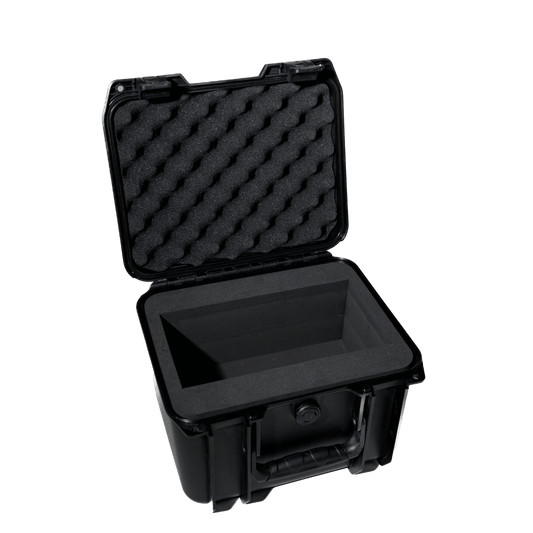

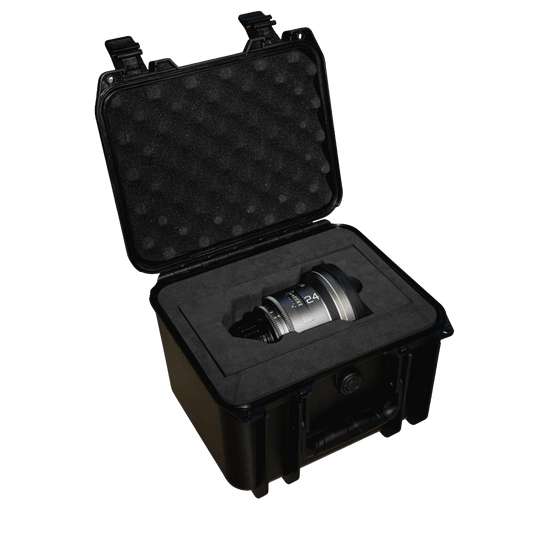

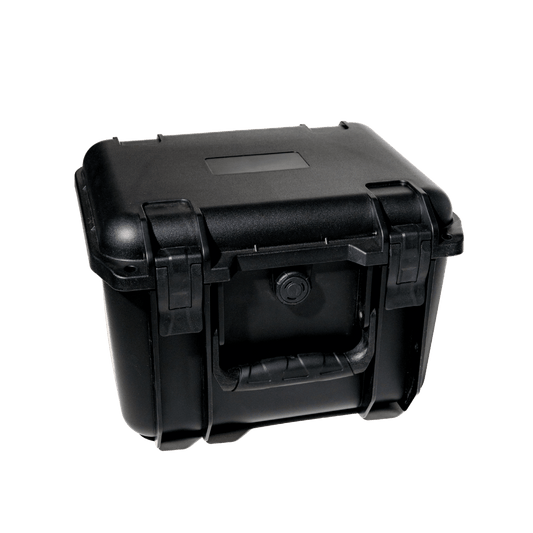

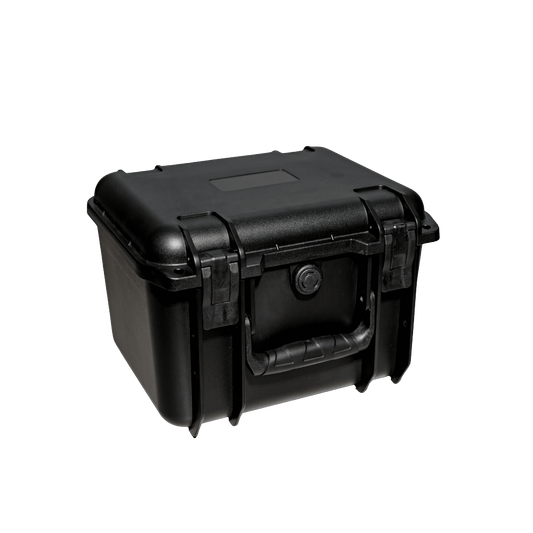

Mercury Accessories

All New Atlas Lens Co. Exclusive

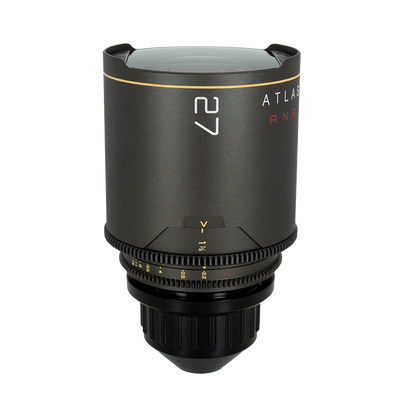

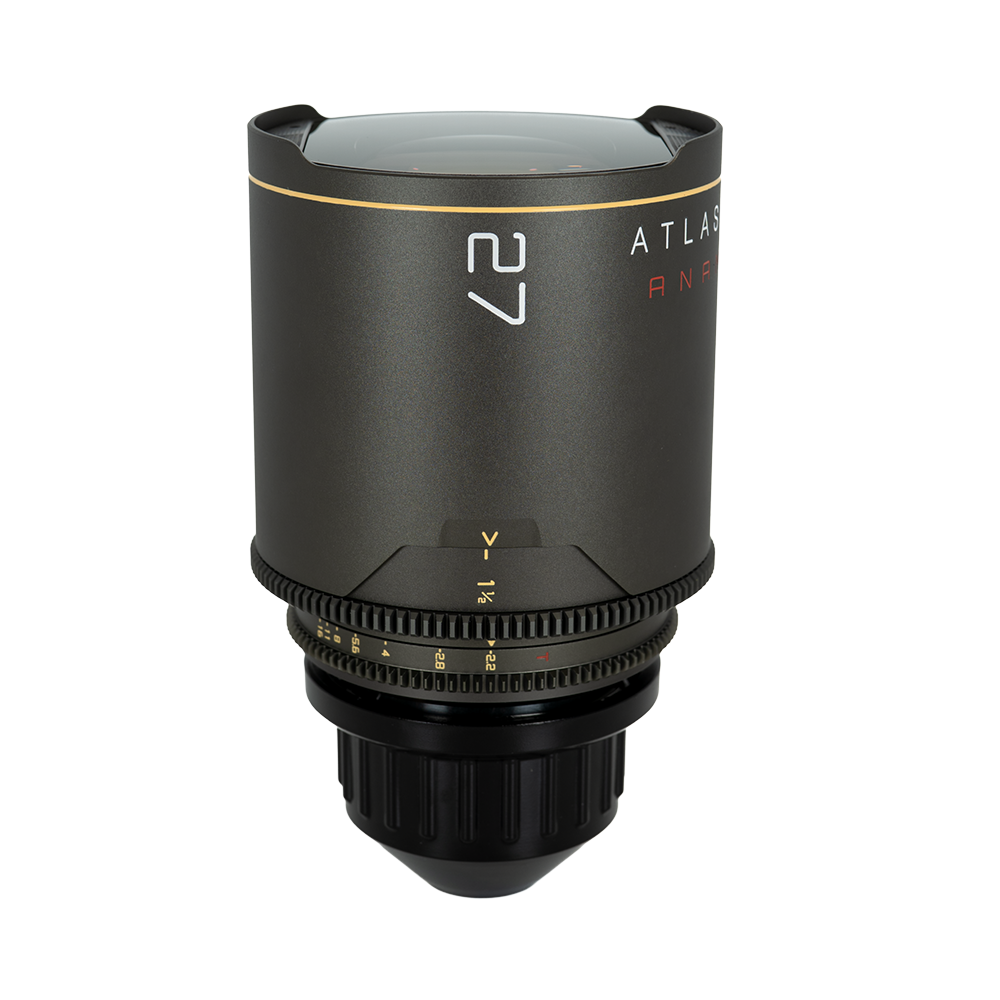

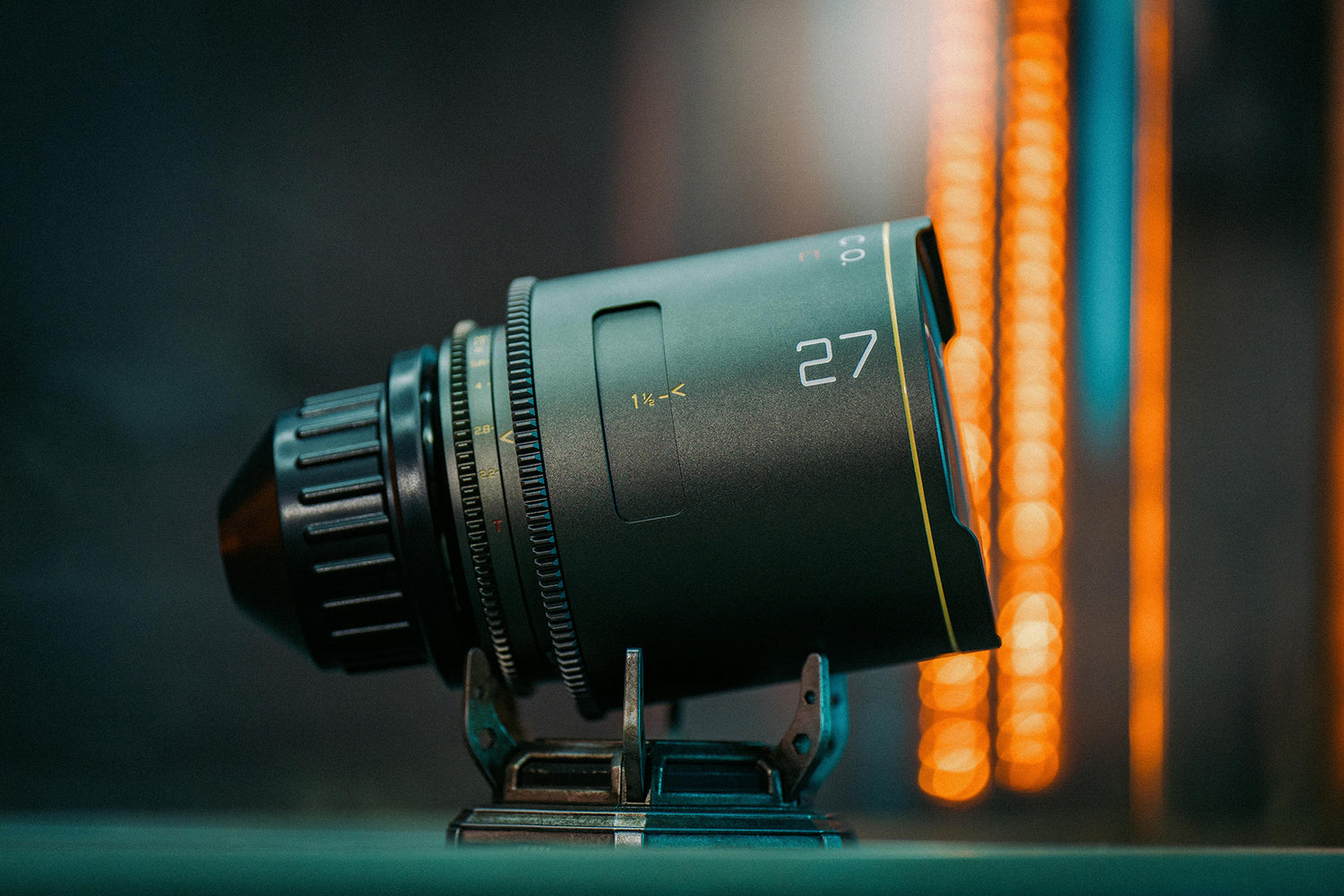

27MM Mercury Lens

Be the first to receive the all new 27mm Mercury lens.

Fill out your information to get updates on release date and shipping times.

Book A Demo

“THIS IS A LENS MADE FOR MAKING MOVIES, WITH AN UNDENIABLY CINEMATIC QUALITY THE SECOND YOU ATTACH IT TO A CAMERA.”

We pushed the boundaries of the Mercury Series in optical and product design, balancing vintage character with modern sensor performance and designing these lenses to support every cinematographer in their lifelong pursuit of expressing their image-craft.

This is a lens made for making movies, with an undeniably cinematic quality the second you attach it to a camera, whether professional cinema camera or mirrorless via PL adapter.

Modern Conveniences

  • Full-frame sensor coverage with 1.5x anamorphic coefficient

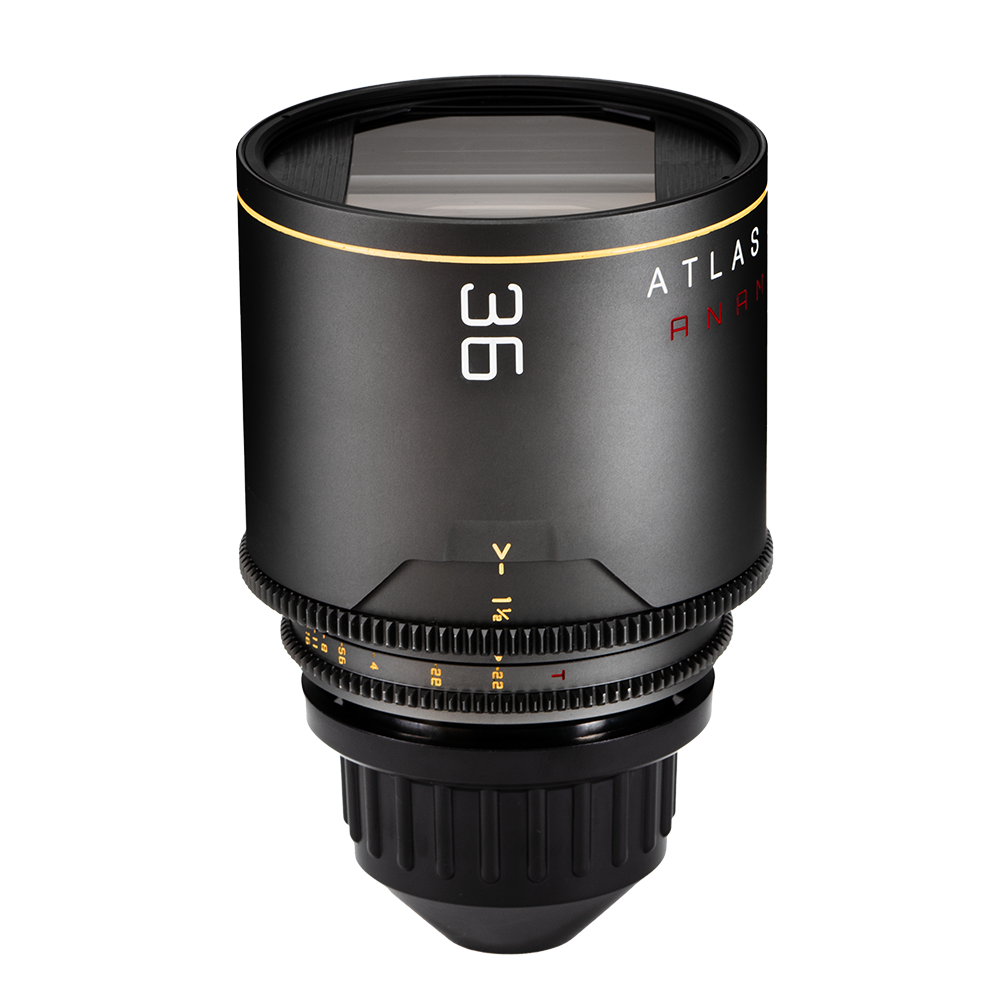

  • Aperture of T2.2 for Mercury Series 36mm

  • Lightweight and compact: Half the size and weight of most pro anamorphic lenses

  • Standardized gears and diameters with 95mm front diameter

  • Unified focus and iris position (reduces need for adjustment when switching to different focal lengths)

Optical Personality

  • Warm vintage tones with golden streak flares

  • Enhanced bokeh

  • Exceptional optical performance with vintage geometric personality

  • Near-zero chromatic aberration

  • Pleasing, classic anamorphic barrel distortion

More personality, zero compromises

The Mercury Series showcases exceptional optical performance, color performance, and clarity with vintage geometric personality. The Mercury lenses feature a golden lens flare when direct light sources hit the glass. They also have excellent close-focus with near-zero chromatic aberration, allowing Mercury Series lenses to be used in all kinds of demanding scenarios. The Mercury Series lenses are crisp and resolute, while optimized to bring out the beauty in a variety of skin tones.

Shot on Mercury Series

Fly | Filmed on Atlas Mercury Group II

Rocketman | Filmed on Atlas Mercury Group ll

Ascend | Filmed on Atlas Mercury 24/27mm

Atlas Mercury Series | LA SOMMER

Atlas Mercury Series | My Own Eyes

FILMED ON: MERCURY SERIES + RED KOMODO
1
2
3
4
5

Mercury goes wherever your stories take you

Our talented team of designers and engineers examined the needs of cinematographers around the world to create a new line of anamorphic lenses meant to be used on any set, in any rig configuration - whether on land, sea, or air: from the largest production, to solo operator run-and-gun, aerials, underwater, or anywhere in between.

With full-frame coverage, a 1.5x squeeze ratio with enhanced bokeh, a dynamic geometric optical personality and warm vintage tones, and exceptional optical performance -- all at half the size and weight of most pro anamorphic lenses.

Mercury Series goes wherever your stories take you.

#FilmedonMercurySeries

1
2
3
4
5
6

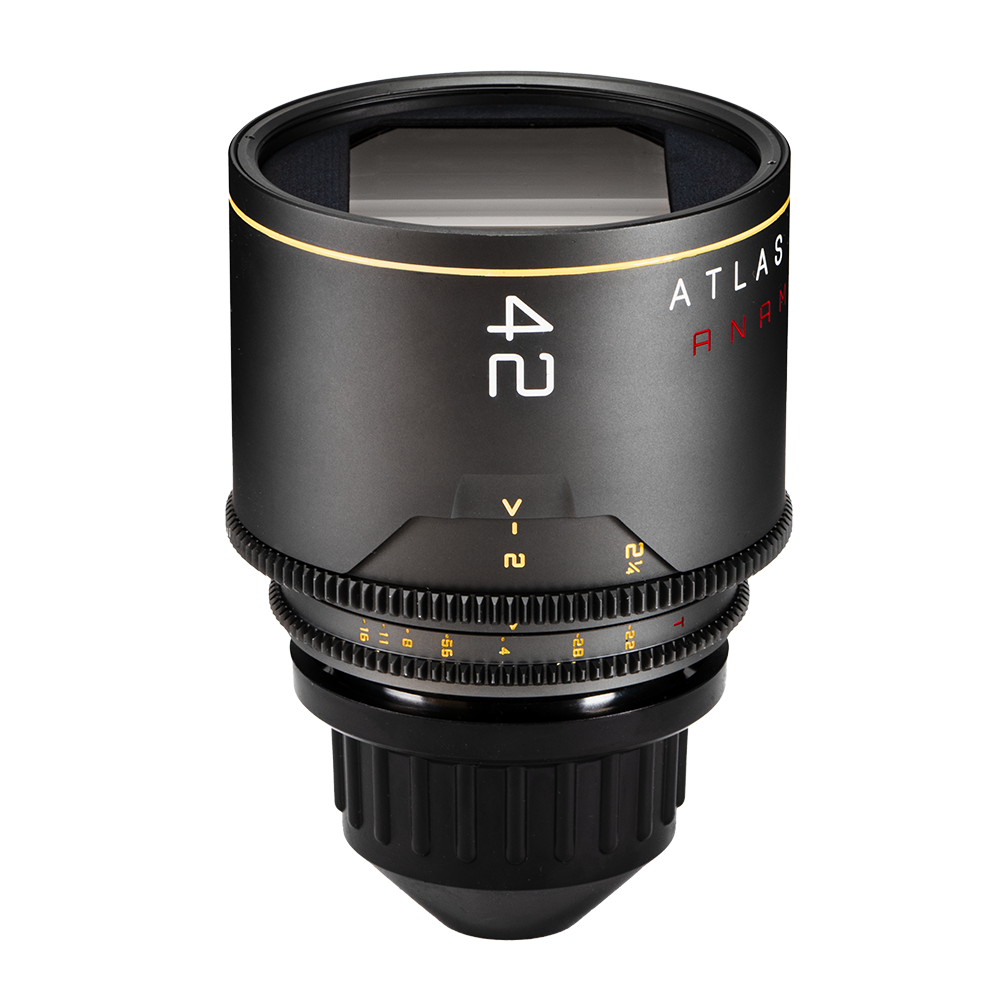

The Specs

  • Full-frame sensor coverage with 1.5x anamorphic coefficient

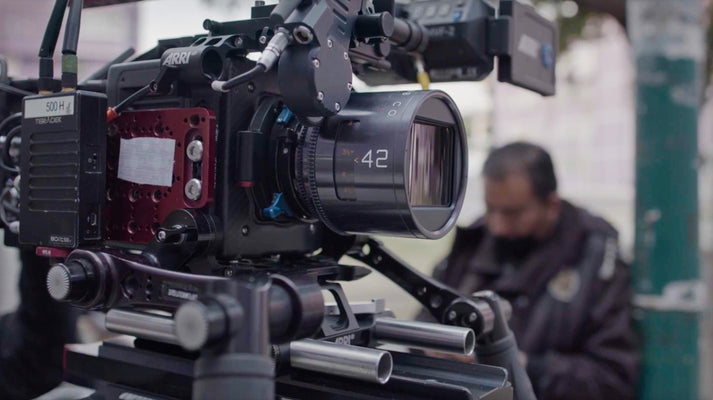

  • Aperture range from T2.2 - T16 for Mercury 42mm
  • Lightweight and compact at half the size and weight of most pro anamorphic lenses - 42mm weighs 2.3lbs (1.1kg) and measures 4.4in (11.2cm) in length
  • Exceptional optical performance with vintage geometric personality: Golden flares, pleasing barrel distortion, near-zero chromatic aberration
  • Standardized gears and diameters with 95mm front diameter
  • Arri PL mount
