Atlas Lens Co

Orion Series Anamorphic Lenses

Orion Series Anamorphic Lenses

Size
Scale

ORIO-0018-300S

$17,995.00 USD
$17,995.00 USD
Sale Sold out
Shipping calculated at checkout.

Orion Series lenses combine the aesthetic of vintage anamorphic lenses with modern convenience, adaptability, and dependability.


Orion Series 2X anamorphic prime lenses are built to be a universal filmmaking tool — perfect for the latest professional film and digital cinema cameras with native PL mount or just as easily adapted to Canon EF-based cinema cameras.

Technical Specifications



View full details

DAKAR | Filmed on Atlas Orion 135mm/200mm

The Lineup

Orion Series lenses combine the aesthetic of vintage anamorphic lenses with modern convenience, adaptability, and dependability.

  • 18mm

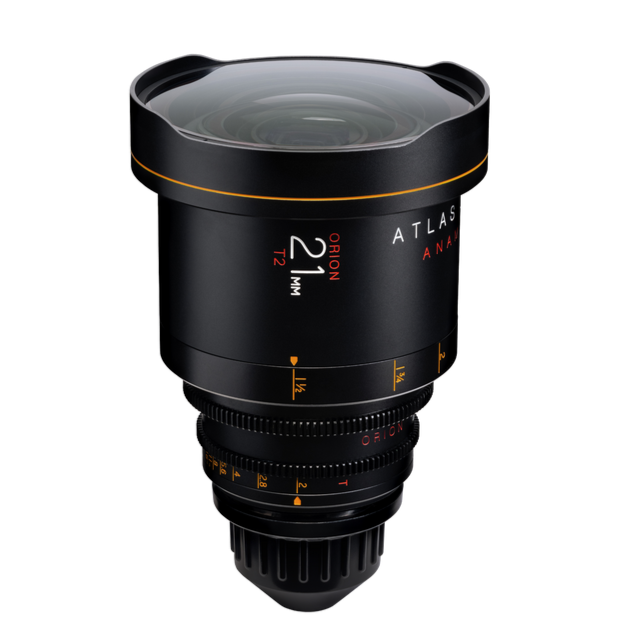

  • 21mm

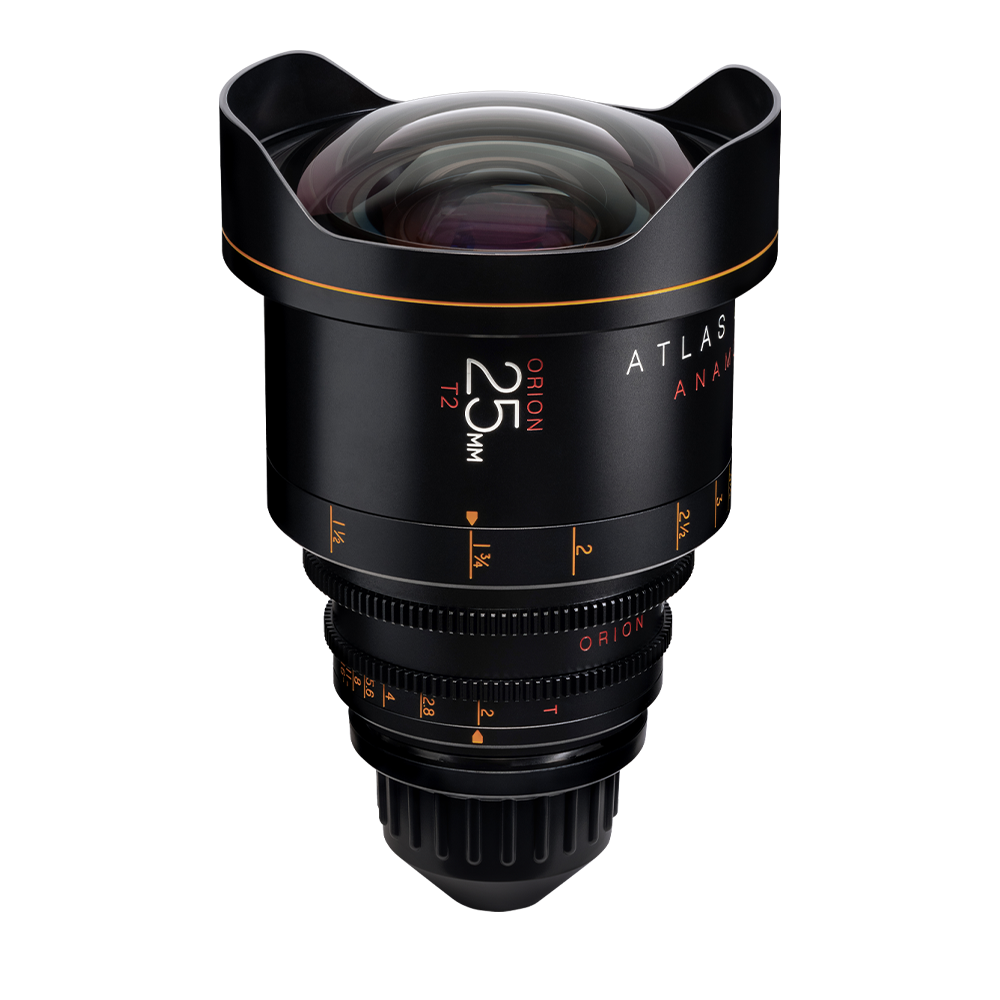

  • 25mm

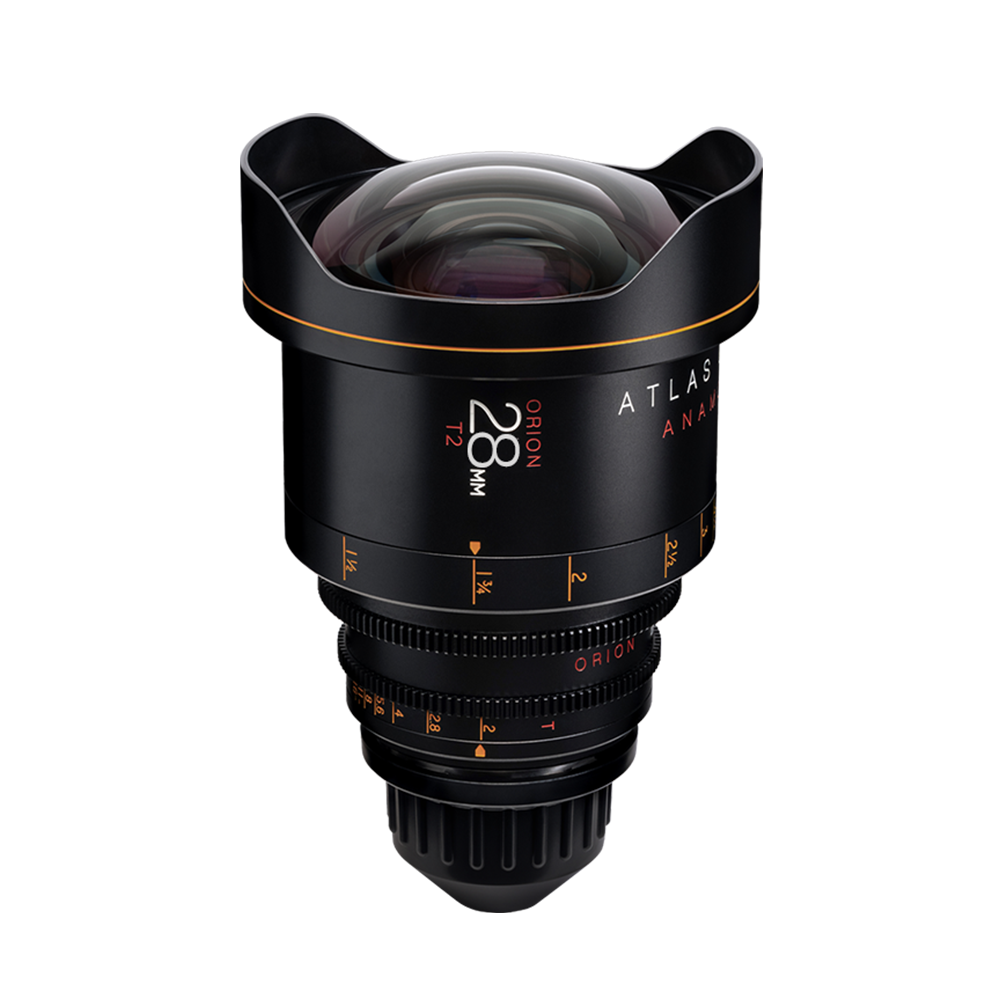

  • 28mm

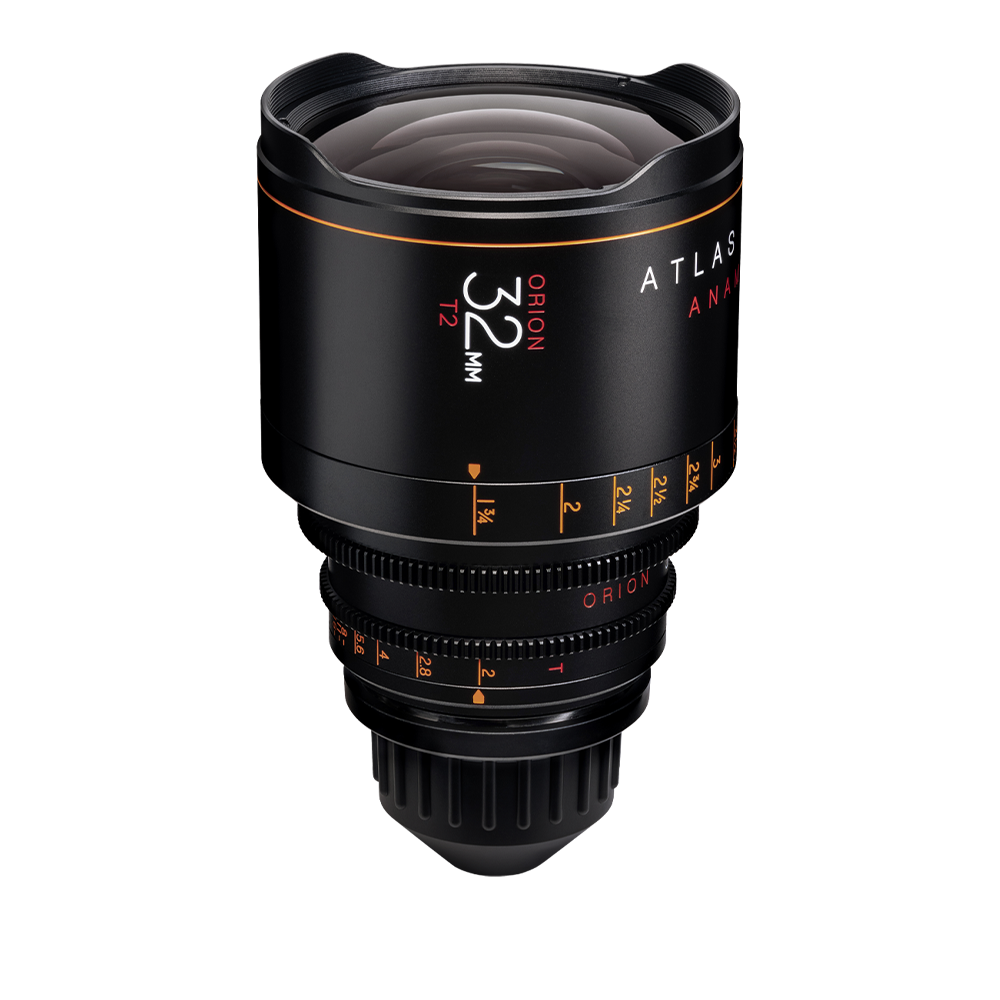

  • 32mm

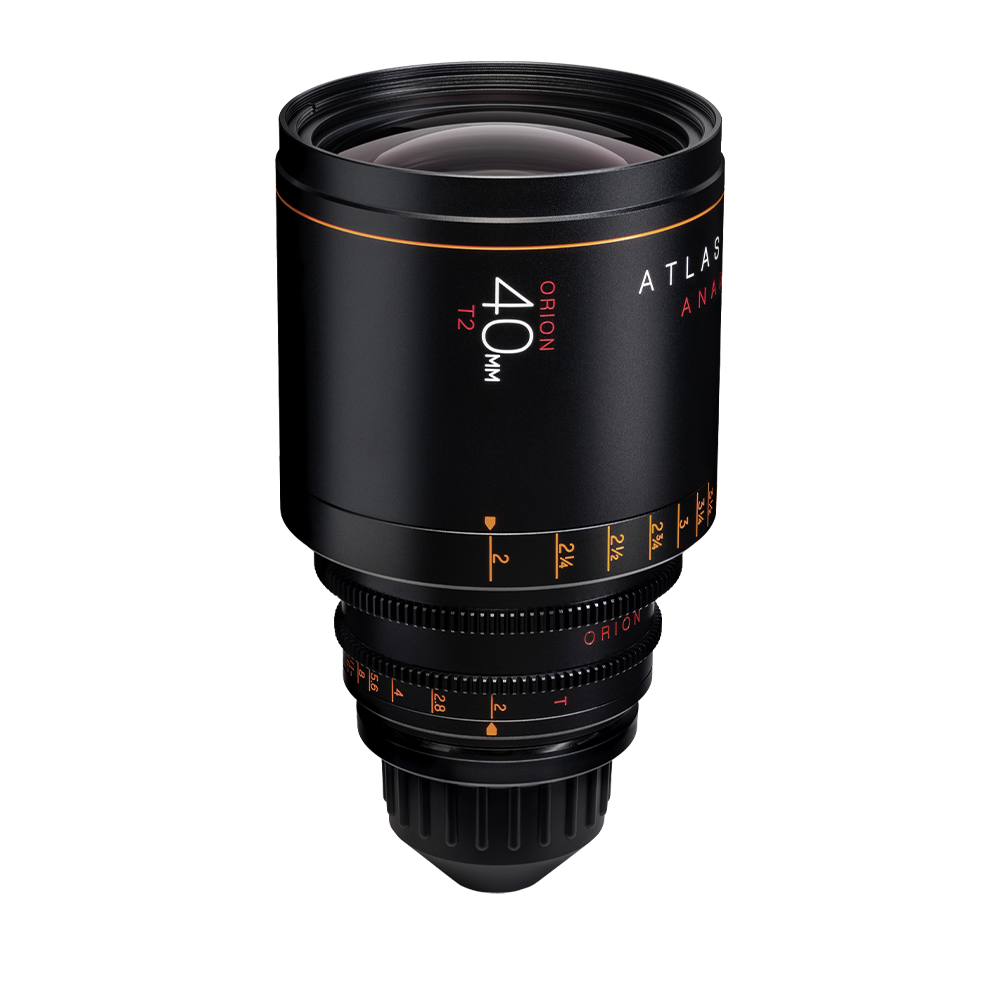

  • 40mm

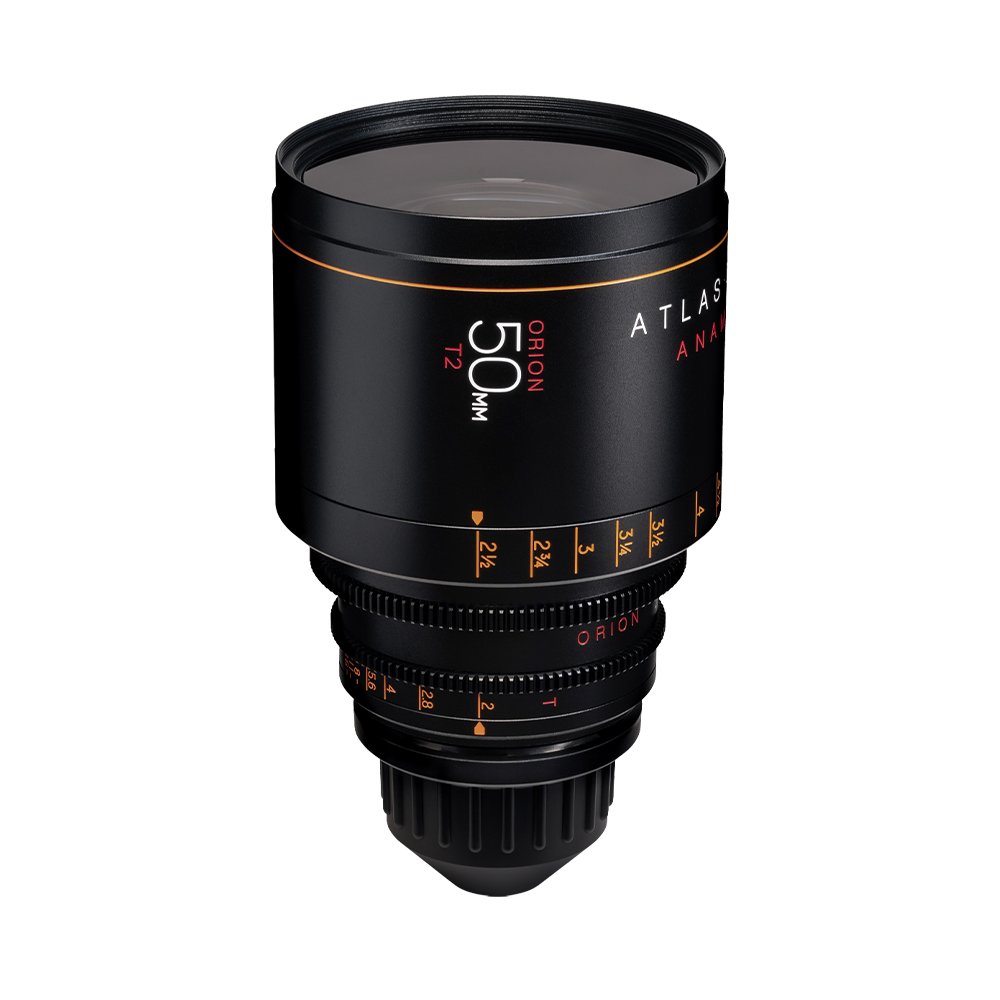

  • 50mm

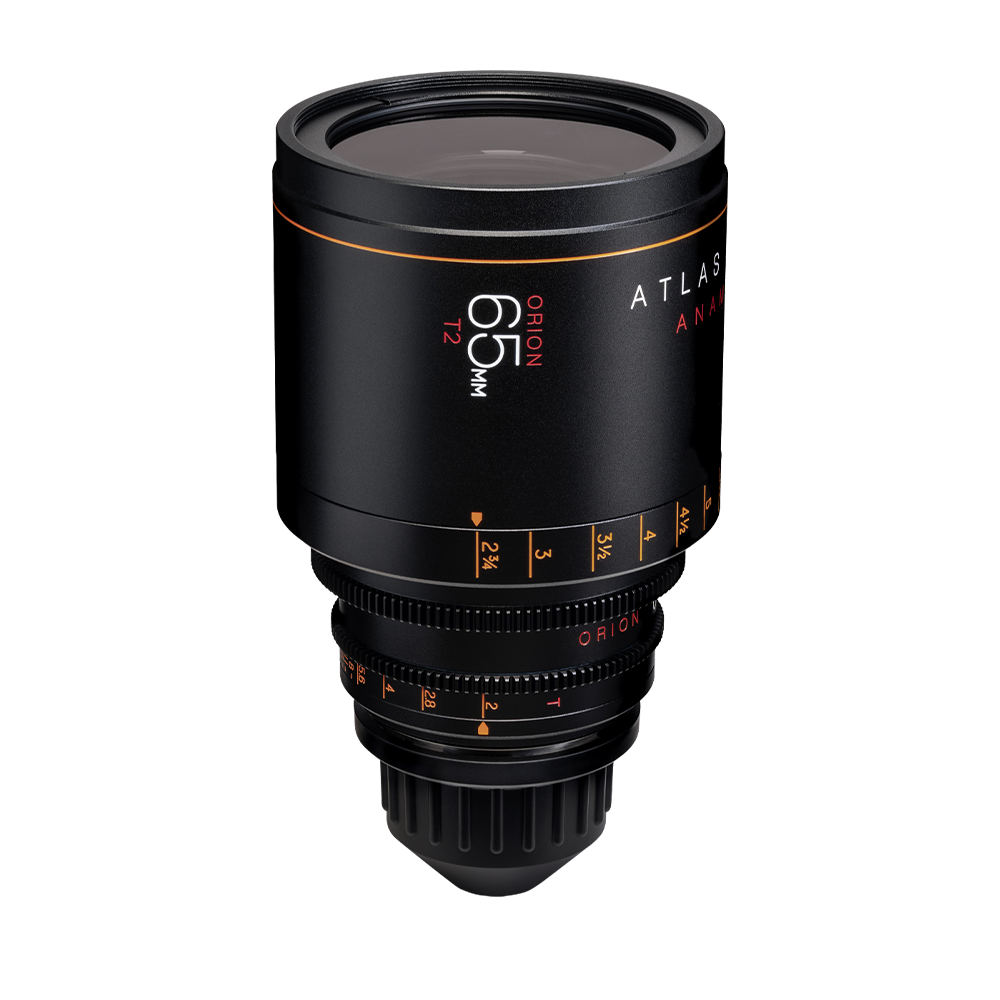

  • 65mm

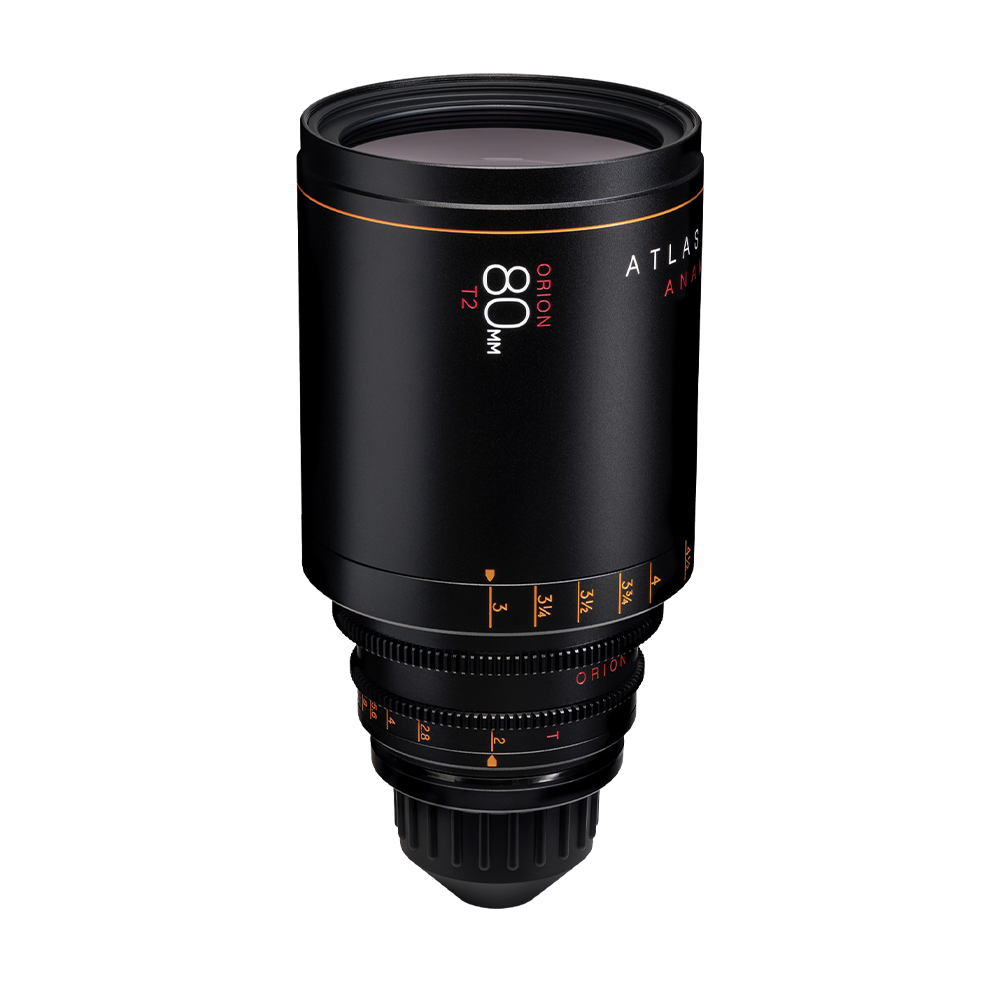

  • 80mm

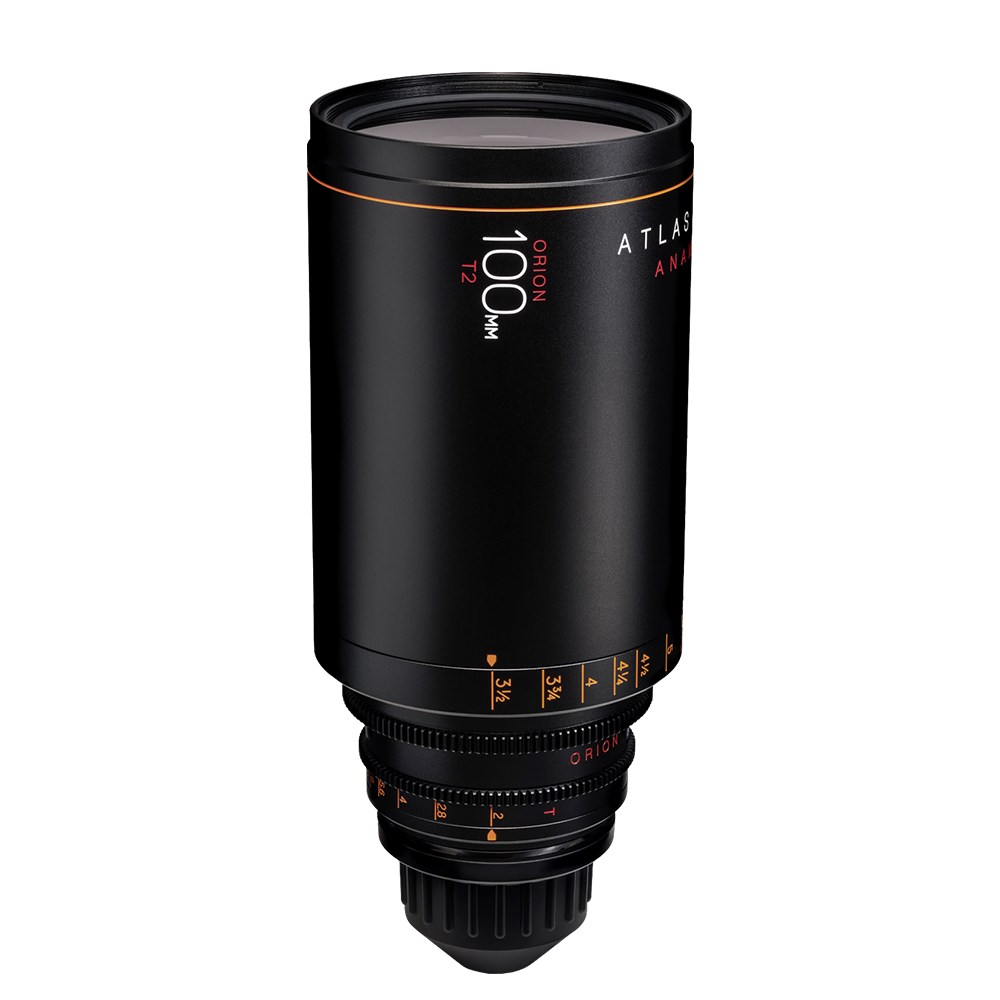

  • 100mm

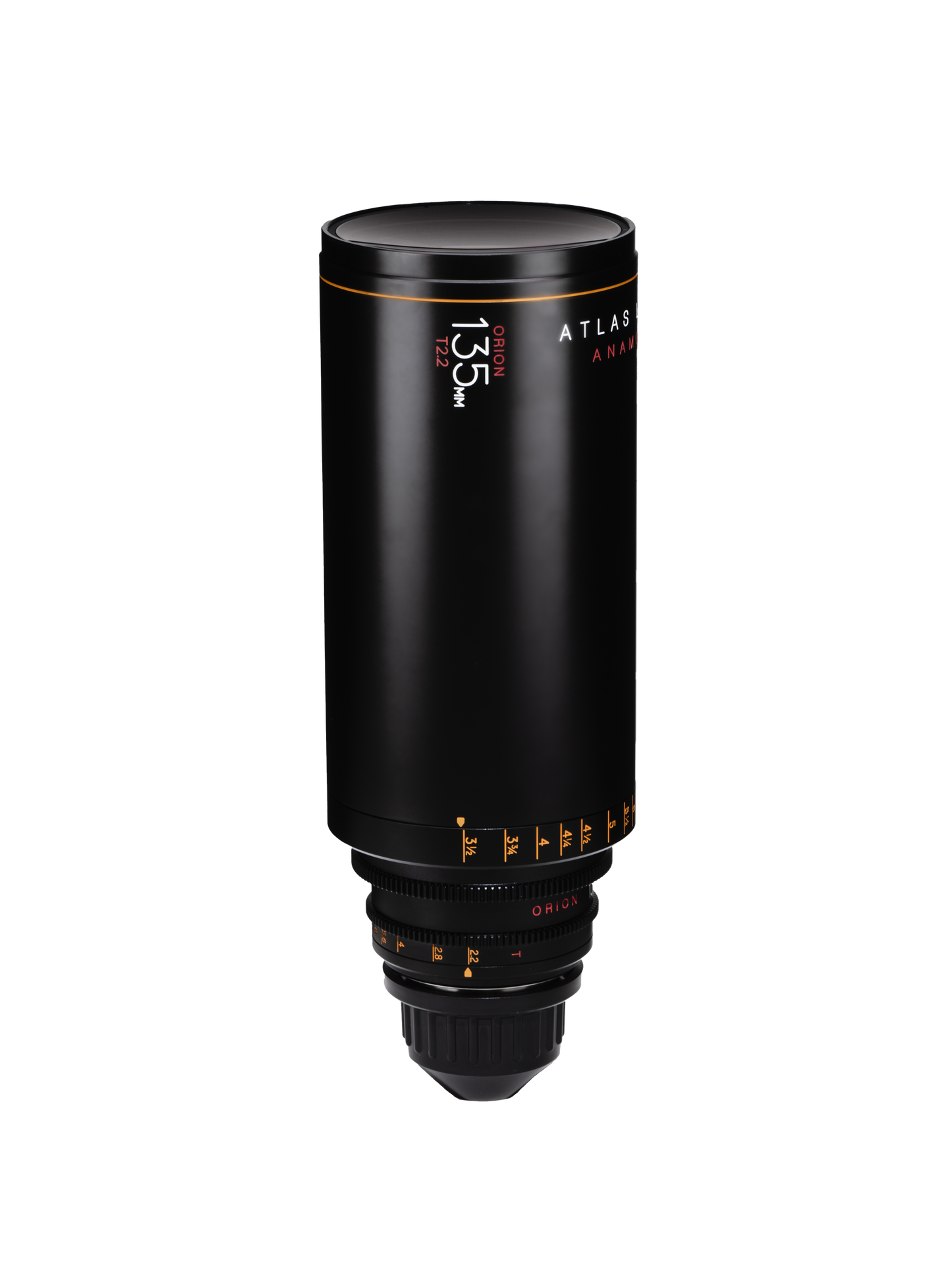

  • 135mm

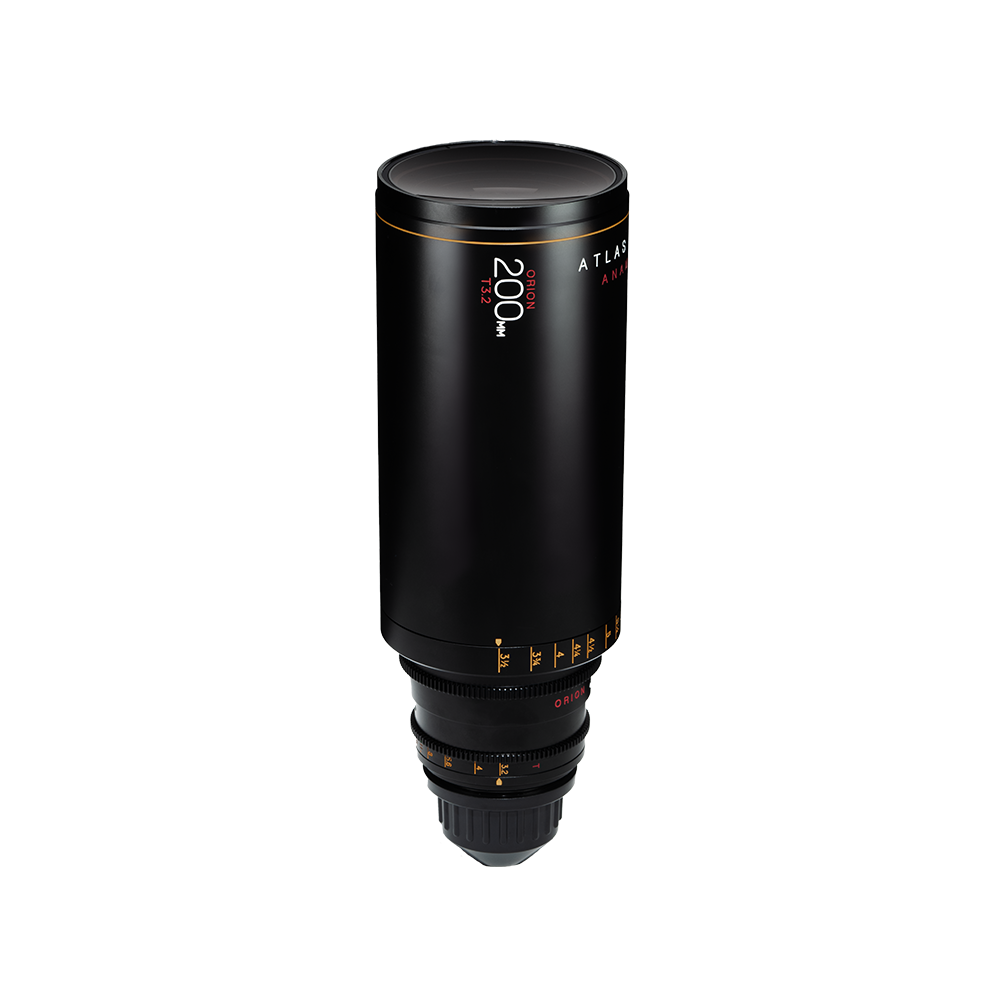

  • 200mm

Lens Specifications

Focal Length 18mm 21mm 25mm 28mm 32mm 40mm 50mm 65mm 80mm 100mm 135mm 200mm
T-Stop Range T2 - T16 T2.2 - T16 T3.2 - T16
Min Focus 1.5 ft / .45 m 1.5 ft / .45 m 1.5 ft / .45 m 1.75 ft / .53 m 2.0 ft / .56 m 2.5 ft / .76 m 2.75 ft / .84 m 3.0 ft / .91 m 3.0 ft / .91 m 3.5 ft / 1.1 m
Weight 6.95 lbs / 3.15 kg 6.9 lbs / 3.1 kg 6.2 lbs / 2.8 kg 6.5 lbs / 2.9 kg 4.7 lbs / 2.1 kg 5.2 lbs / 2.4 kg 5.0 lbs / 2.3 kg 5.0 lbs / 2.3 kg 6.0 lbs / 2.7 kg 6.7 lbs / 3 kg 8.8 lbs / 3.99 kg 9 lbs / 4 kg
Length 7.4 in / 18.7 cm 7.4 in / 18.7 cm 7.4 in / 18.7 cm 7.4 in / 18.7 cm 7.4 in / 18.9 cm 7 in / 17.8 cm 7.2 in / 18.4 cm 8.4 in / 21.2 cm 9.8 in / 25 cm 12 in / 30.5 cm 12.95 in / 32.9 cm 12.95 in / 32.9 cm
Front Diameter 136mm 114mm
Image Circle 31mm (4-perf Super 35)
Horizontal FOV 140° 124° 109° 98° 88° 66° 55° 43° 35° 28° 20.9° 14.4°
  • 14 blade iris, all elements are glass (no plastics). Lens body is coated in scratch-resistant anodized aluminum.
  • The measurement from flange to the back of the glass is 18.45mm on the deepest lens (32mm T2).
  • Accepts 105mm screw-in filter to facilitate drone and gimbal use (40mm–100mm).
  • For additional stability, lens feet and support brackets are available for purchase.

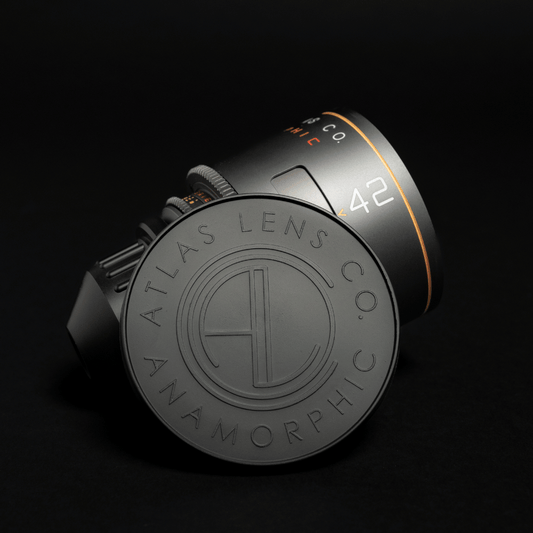

Orion Series Accessories

View All Accessories

1 13

Orion Series lenses deliver the striking beauty of painterly waterfall bokeh, disproportionate breathing, and signature yet controlled flare.

At the heart of Atlas Lens Co. Orion Series is a true front-anamorphic group. They offer vintage optical characteristics to include in your cinematic storytelling toolkit with a mechanical functionality that won't leave you feeling confounded by compromise.

SCHEDULE DEMO

Modern Conveniences

  • Crisp flat-field performance when stopped down to a T2.8 or more

  • T2 aperture with pleasant spherical aberration glow when wide open

  • Modern, mechanically dependable design (standardized across all 6 focal lengths)

  • Unified focus and iris position (reduces need for adjustment when switching to different focal lengths)

  • 136mm outer diameter for native use with a variety of matteboxes and filters

Dynamic Orion Characteristics

  • Extremely low distortion for an incredibly wide lens

  • horizontal field-of-view with 2x anamorphic squeeze

  • 8” (1.5’) minimum/close focus

  • Beautiful shallow depth-of-field

  • Complements the Orion Series family of lenses
