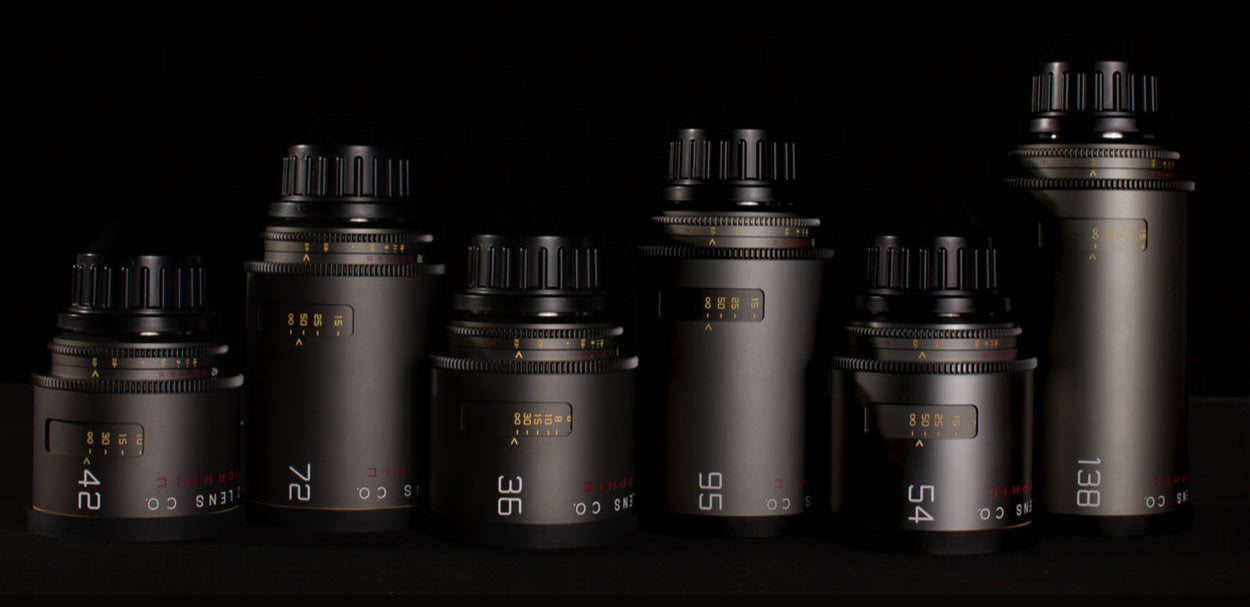

Introducing The New Atlas Mercury Series

  • 36mm

  • 42mm

  • 54mm

  • 72mm

  • 95mm

  • 138mm

1 of 6
Focal Length Aperture Range Min Focus Weight Length Front Diameter Sensor Coverage Field of View Flange System
36mm T2.2 - T16 1.5 ft / 0.46 m 2.7 lbs / 1.2 kg 4.9 in / 12.6 cm 95mm Full-Frame (36.7mm x 25.54mm) 88° PL Mount

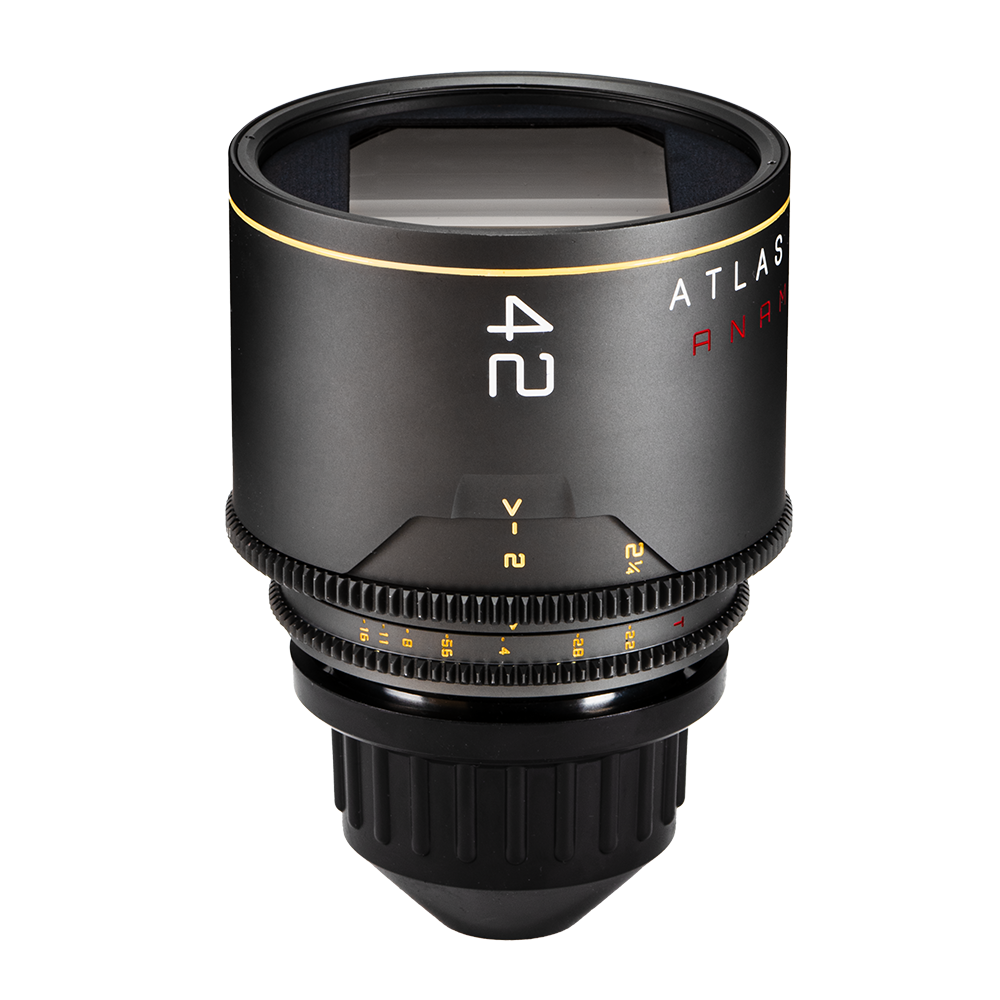

42mm T2.2 - T16 2.0 ft / 0.56 m 2.3 lbs / 1.1 kg 4.4 in / 11.2 cm 95mm Full-Frame 78° PL Mount

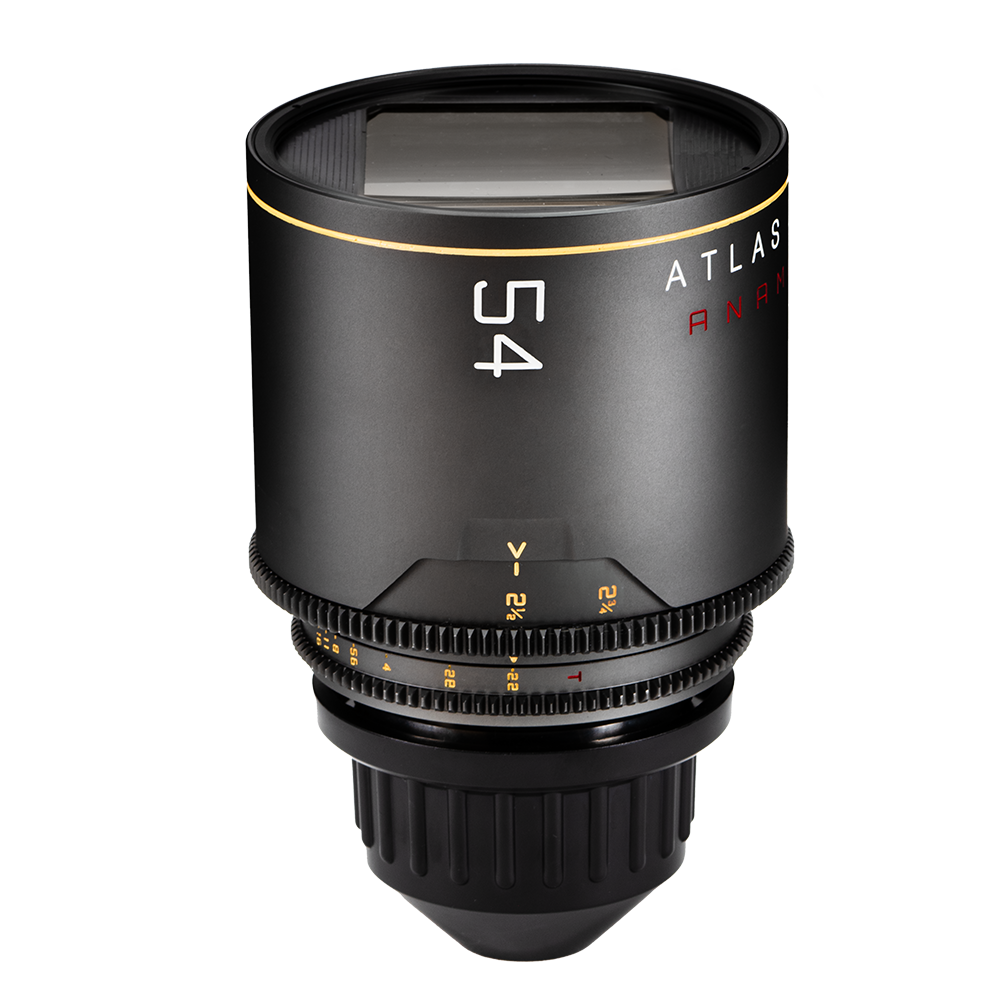

54mm T2.2 - T16 2.5 ft / 0.76 m 2.95 lbs / 1.3 kg 5.0 in / 12.8 cm 95mm Full-Frame 60° PL Mount

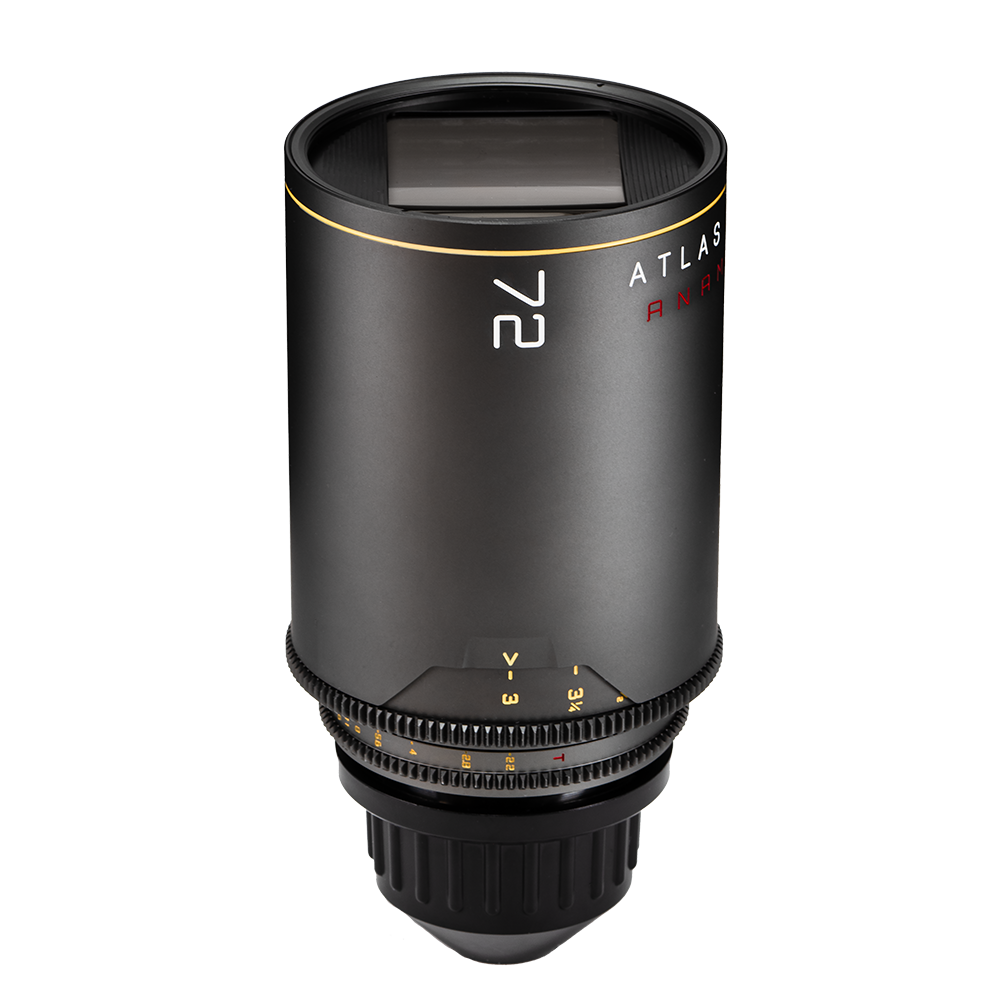

72mm T2.2 - T16 3.0 ft / 0.91 m 3.6 lbs / 1.6 kg 6.3 in / 16.2 cm 95mm Full-Frame 44° PL Mount

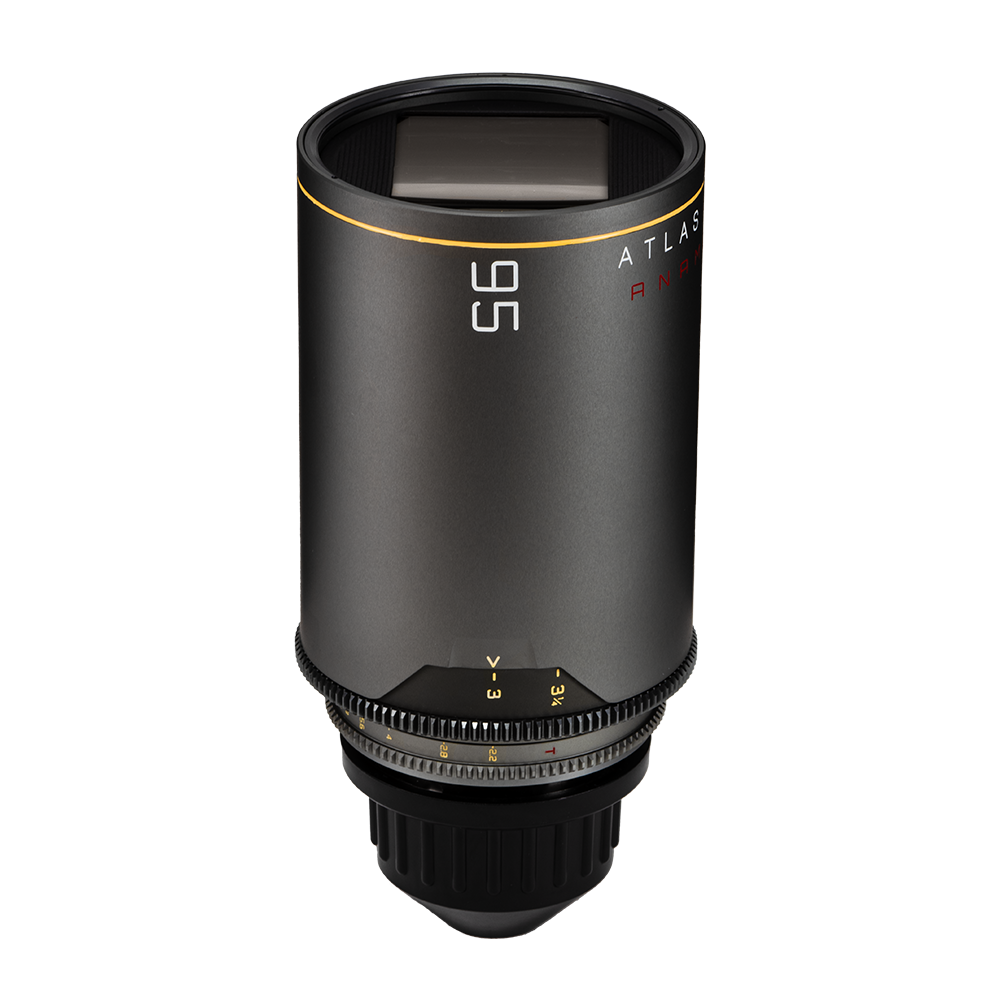

95mm T2.2 - T16 3.0 ft / 0.91 m 4.4 lbs / 2.0 kg 6.9 in / 17.6 cm 95mm Full-Frame 32° PL Mount

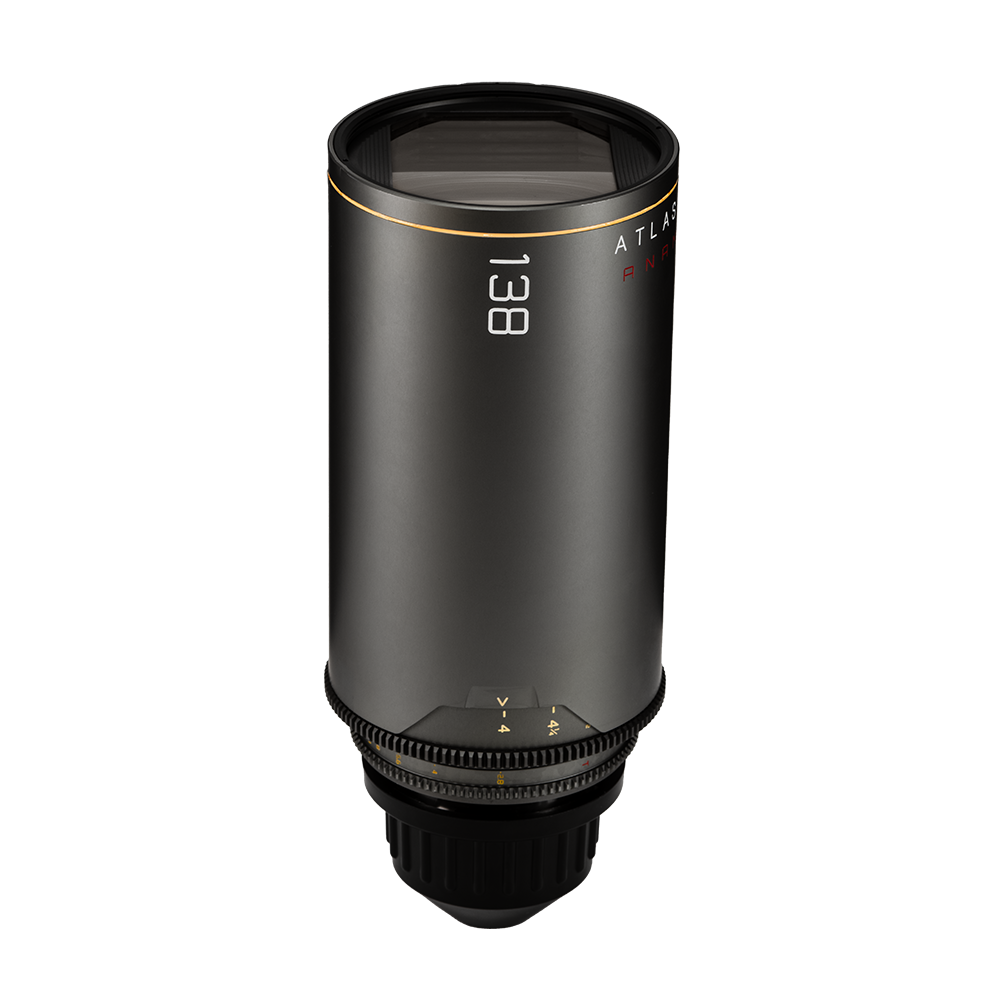

138mm T2.2 - T16 4.0 ft / 1.2 m 4.7 lbs / 2.1 kg 8.1 in / 20.5 cm 95mm Full-Frame 23° PL Mount

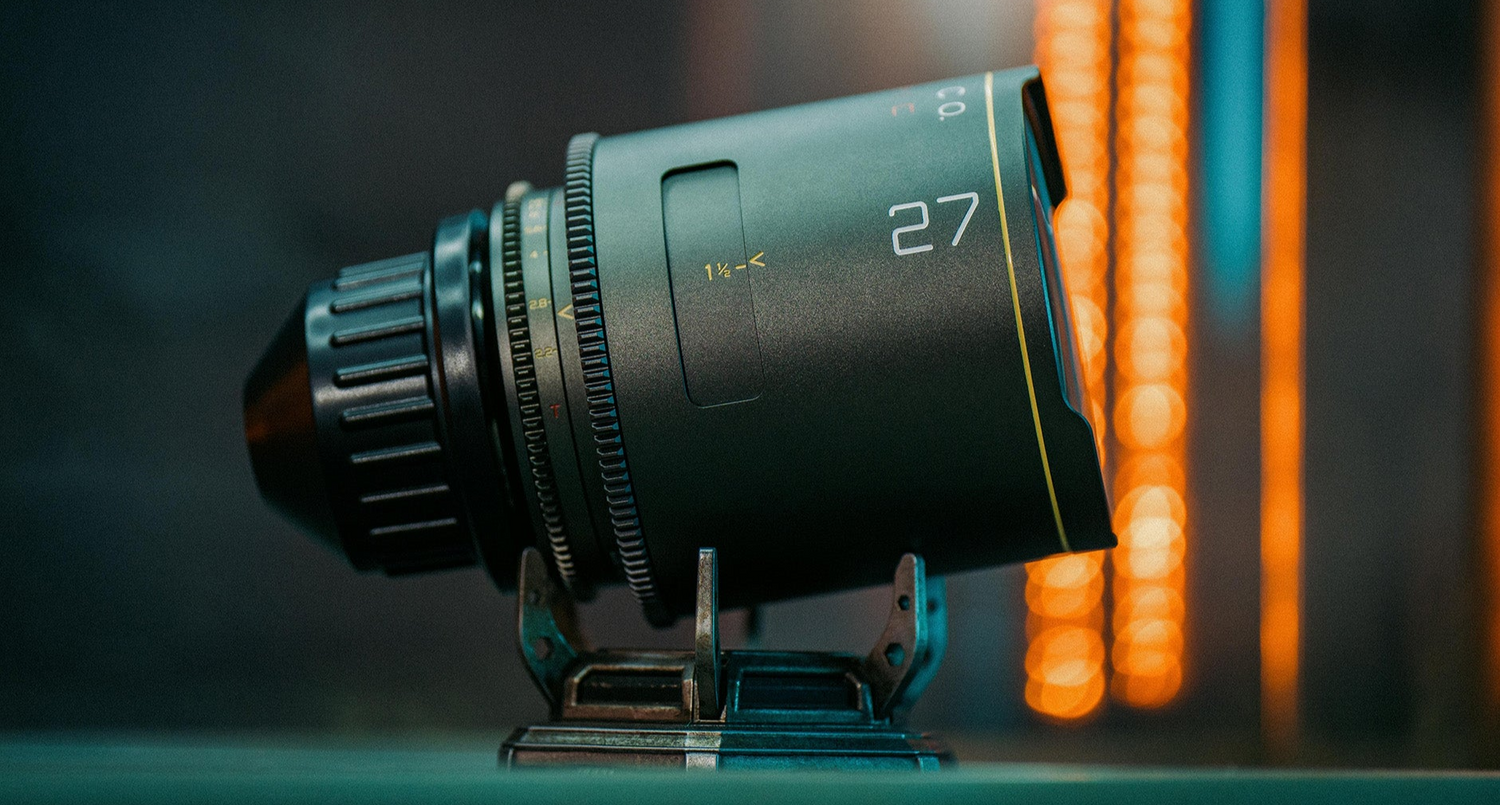

Be the first to shoot cinema on our new Mercury 27mm lens.

Be the first to shoot cinema on our new Mercury 27mm lens.

Learn more

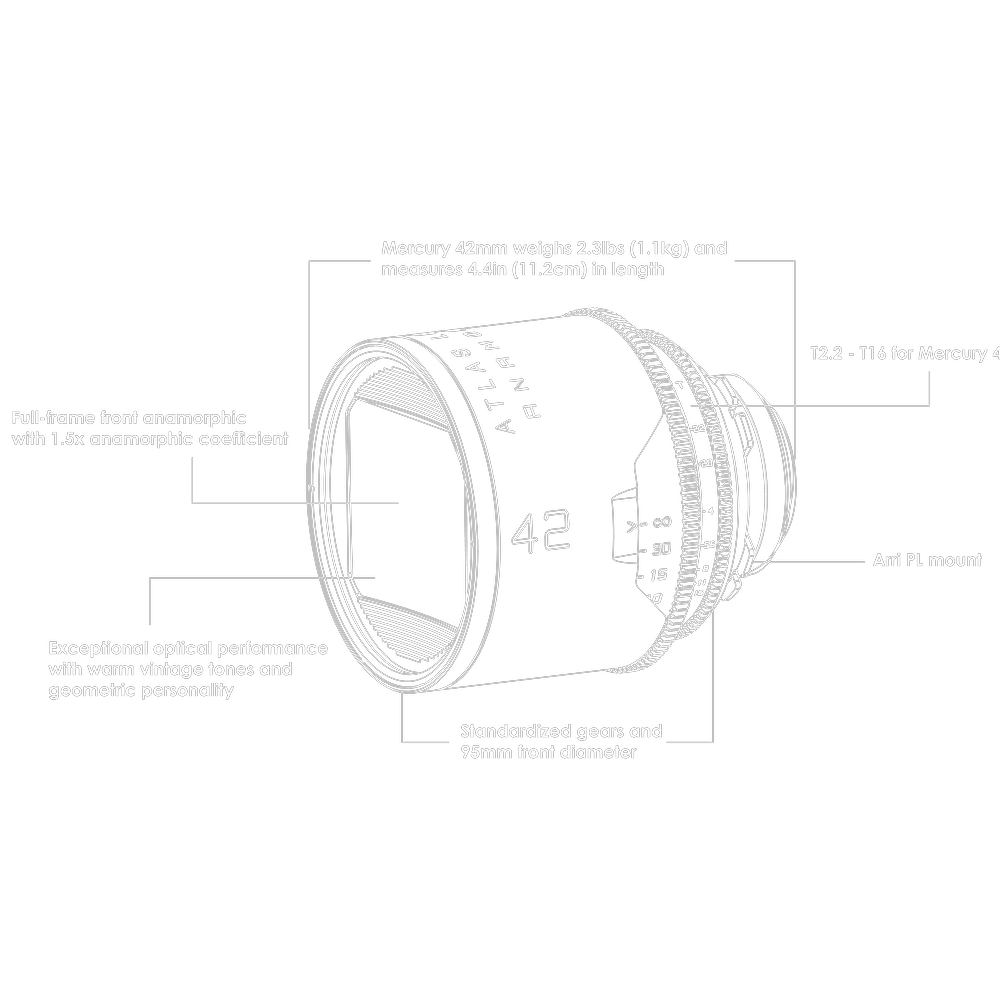

The Specs

  • Full-frame sensor coverage with 1.5x anamorphic coefficient
  • Aperture range from T2.2 - T16 for Mercury 42mm
  • Lightweight and compact at half the size and weight of most pro anamorphic lenses - 42mm weighs 2.3lbs (1.1kg) and measures 4.4in (11.2cm) in length
  • Exceptional optical performance with vintage geometric personality: Golden flares, pleasing barrel distortion, near-zero chromatic aberration
  • Standardized gears and diameters with 95mm front diameter
  • Arri PL mount

Pro Anamorphic Made Personal

The New Atlas Mercury Series 1.5x Full-Frame Anamorphic Lenses. Mercury Series is our brand new family of anamorphic lenses, designed to further connect cinematographers, directors, and filmmakers everywhere to the images they create.

Buy Now

“THIS IS A LENS MADE FOR MAKING MOVIES, WITH AN UNDENIABLY CINEMATIC QUALITY THE SECOND YOU ATTACH IT TO A CAMERA.”

We pushed the boundaries of the Mercury Series in optical and product design, balancing vintage character with modern sensor performance and designing these lenses to support every cinematographer in their lifelong pursuit of expressing their image-craft.

This is a lens made for making movies, with an undeniably cinematic quality the second you attach it to a camera, whether professional cinema camera or mirrorless via PL adapter.

  • Full-frame sensor coverage with 1.5x anamorphic coefficient

  • Aperture of T2.2 for Mercury Series 36mm

  • Lightweight and compact: Half the size and weight of most pro anamorphic lenses

  • Standardized gears and diameters with 95mm front diameter

  • Unified focus and iris position (reduces need for adjustment when switching to different focal lengths)

  • Warm vintage tones with golden streak flares

  • Enhanced bokeh

  • Exceptional optical performance with vintage geometric personality

  • Near-zero chromatic aberration

  • Near-zero chromatic aberration

More personality, zero compromises

The Mercury Series showcases exceptional optical performance, color performance, and clarity with vintage geometric personality. The Mercury lenses feature a golden lens flare when direct light sources hit the glass. They also have excellent close-focus with near-zero chromatic aberration, allowing Mercury Series lenses to be used in all kinds of demanding scenarios. The Mercury Series lenses are crisp and resolute, while optimized to bring out the beauty in a variety of skin tones.
