50mm Orion Series Anamorphic Prime

50mm Atlas Orion Series Anamorphic Prime

Orion Series lenses combine the aesthetic of vintage anamorphic lenses with modern convenience, adaptability, and dependability.

Orion Series 2X anamorphic prime lenses are built to be a universal filmmaking tool — perfect for the latest professional film and digital cinema cameras with native PL mount or just as easily adapted to Canon EF-based cinema cameras.
Price $9,995.00

Financing Available

background image
A UNIVERSAL FILMMAKING TOOL
Vintage anamorphic characteristics
  • Waterfall bokeh Waterfall bokeh
  • Streak flare Streak flare
  • Disproportionate perspective magnification Disproportionate perspective magnification (Telephoto lens with wide-angle field)
  • Pleasant spherical aberration Pleasant spherical aberration glow when wide open
  • Pleasing barrel distortion Pleasing barrel distortion
Modern conveniences
Orion Series lenses are convenient, adaptable, dependable, and ergonomic, with the best of both vintage and modern features.
Orion Series lenses are readily and easily compatible with all mirrorless video / stills hybrid cameras via any PL to mirrorless camera adapter.

Whether your project requires you to shoot digital or film, the Orion Series offer the coverage you need with a 24.89mmx18.66mm imaging area and easily covers full frame formats edge-to-edge with the Atlas LF Extender.
Product Details
  • Interchangeable Mount System with native PL or EF mount options
  • Works with E-mount or Micro 4/3 camera with appropriate adapters

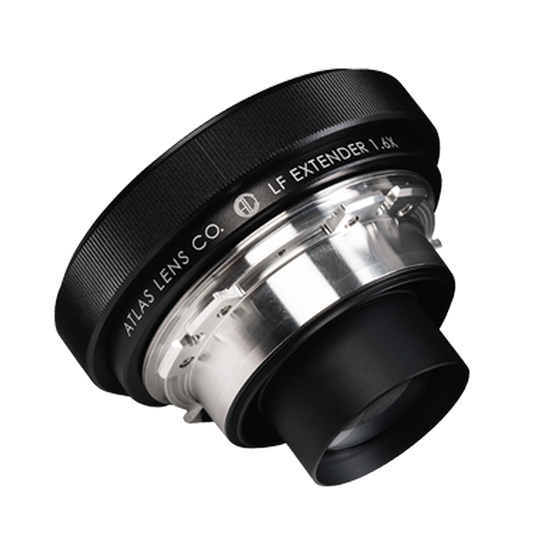

  • Covers full-frame (FF), large format (LF) or Vistavision with our 1.6x LF Extender
  • Focus has a deep 270° travel rotation
  • Cine pitch 0.8 mod gearing on both iris and focus ring allow for simultaneous drive control, even when two motors are mounted on the same side of the lens

Deposits are due at checkout with the remaining balance will be invoiced prior to order allocation. All deposits are fully refundable at any time before products are delivered.

Financing available for eligible USA and Canada-based customers.
Learn more

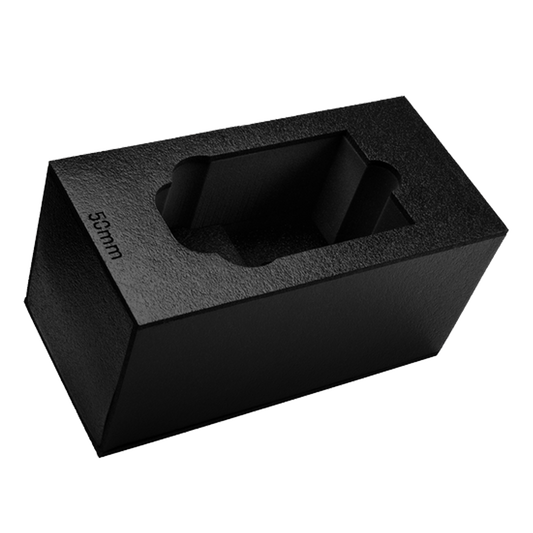

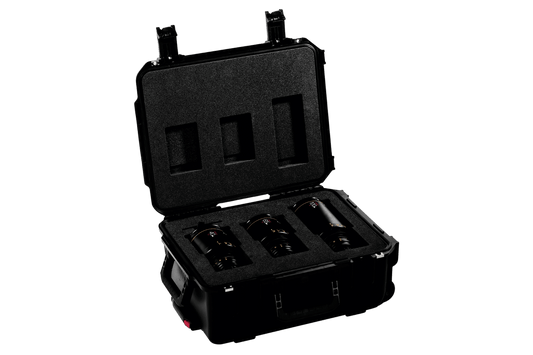

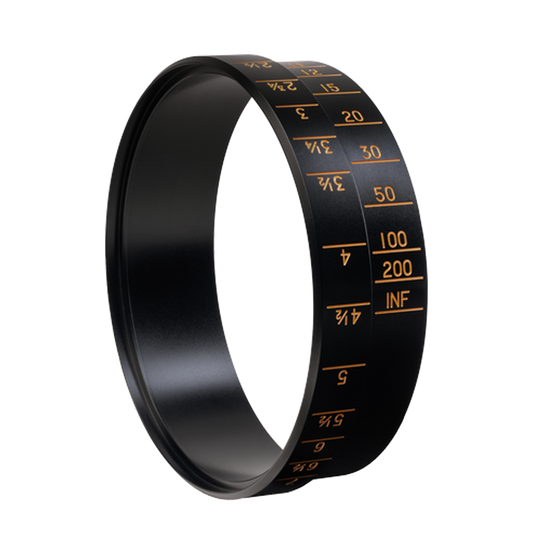

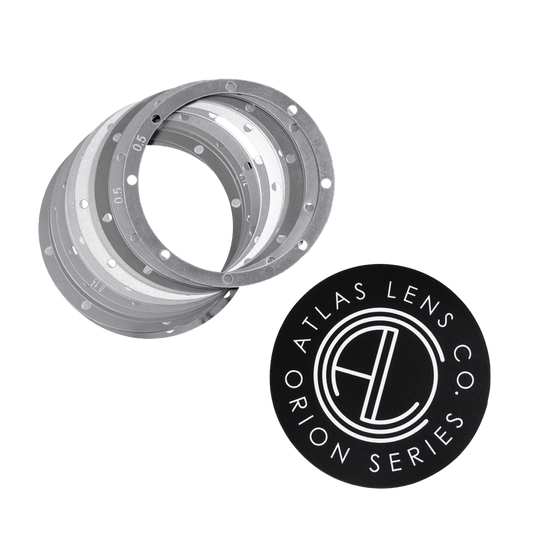

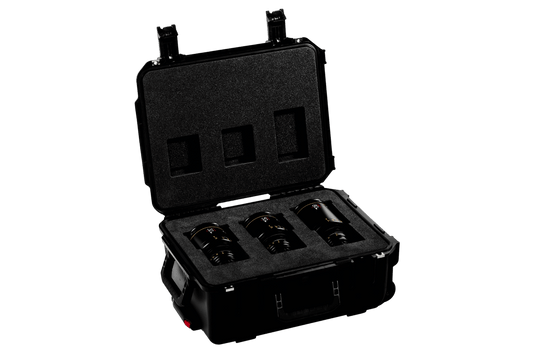

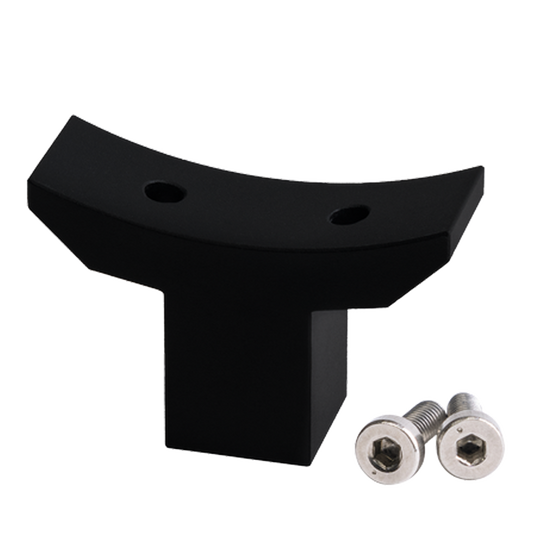

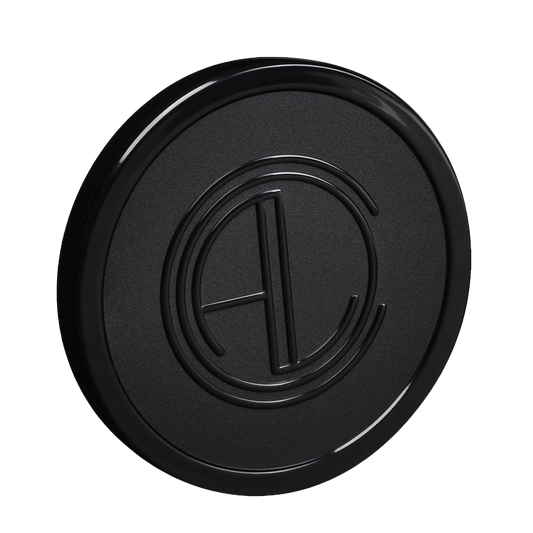

Accessories

Filmed on Atlas

ZERO TWO

DP: Dima Kalenda

FILMED ON

Orion 32mm/50mm + Blackmagic Pocket 6K

THANK U, NEXT

DP: CHRISTOPHER PROBST

FILMED ON

ORION A SET (40/65/100) + RED MONSTRO

Technical Specifications

Download specs
Orion Series 32mm 40mm 50mm 65mm 80mm 100mm
T-Stop RangeT2 - T16T2 - T16T2 - T16T2 - T16T2 - T16T2 - T16
Min Focus (FT) 1.75 FT 2 FT 2.5 FT 2.75 FT 3 FT3.5 FT
Min Focus (M) .53 M .53 M .76 M .84 M .91 M 1 M
Weight (LBS) 4.7 LBS 5.2 LBS 5 LBS 5 LBS 6 LBS 6.7 LBS
Weight (KG) 2.1 KG 2.4 KG 2.3 KG 2.2 KG 2.7 KG 3 KG
Length (IN) 6.7” 7.4” 7” 7.2” 8.5” 10”
Length (CM) 17 cm 18.9 cm 17.8 cm 18.4 cm 21.5 cm 25.4 cm
Front Diameter 114 mm114 mm114 mm114 mm114 mm114 mm
Image Circle 31 mm31 mm31 mm31 mm31 mm31 mm
