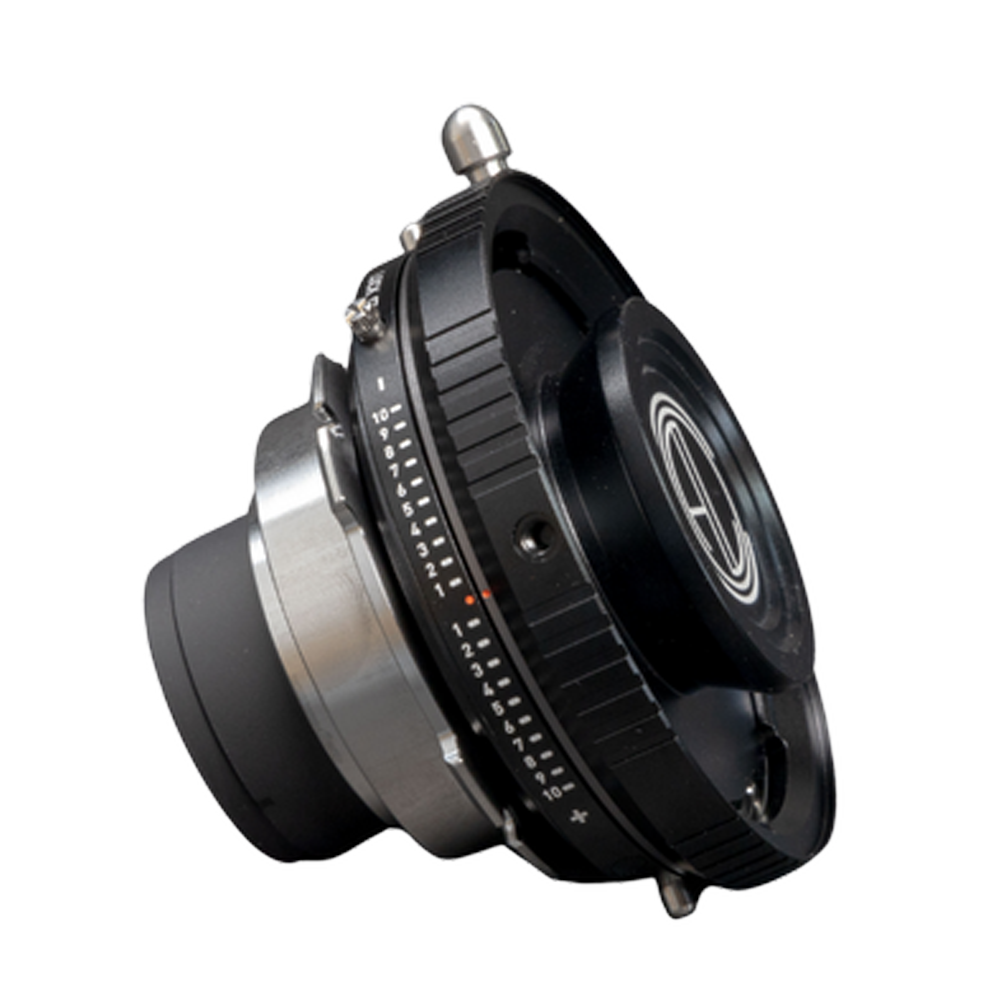

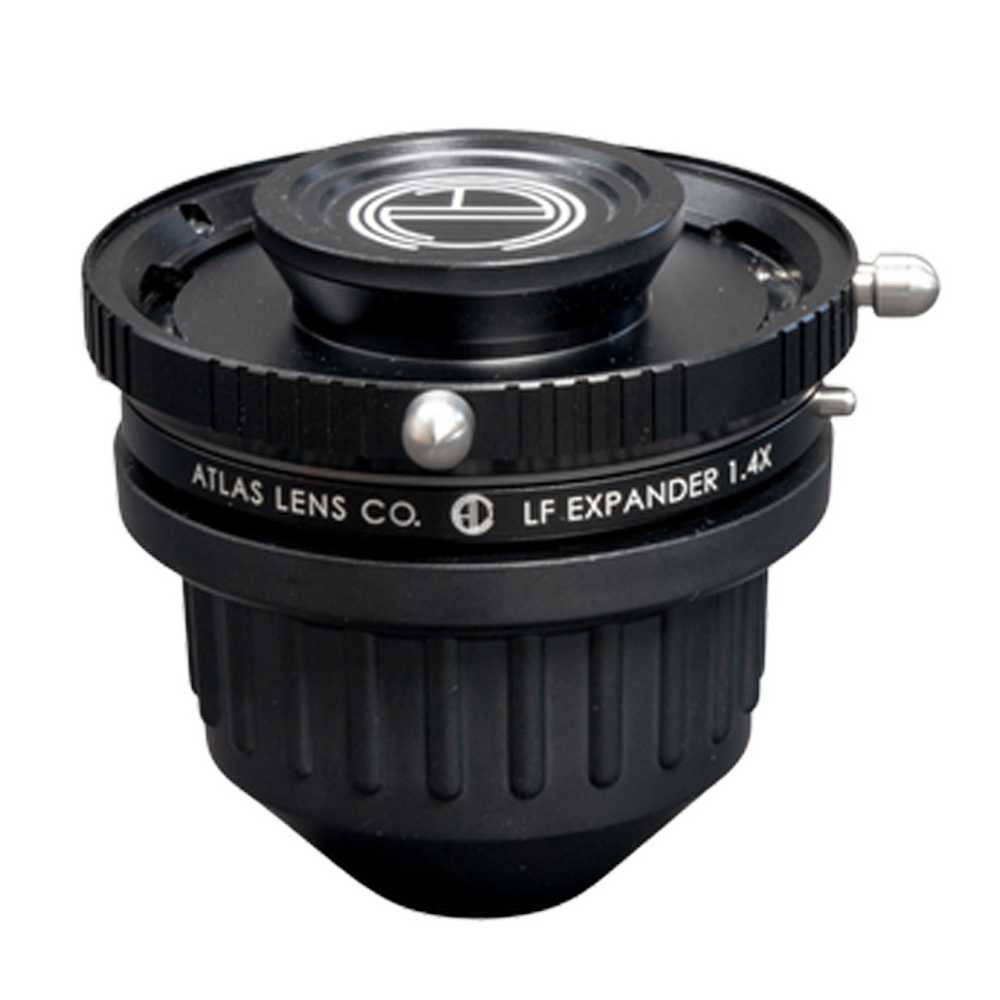

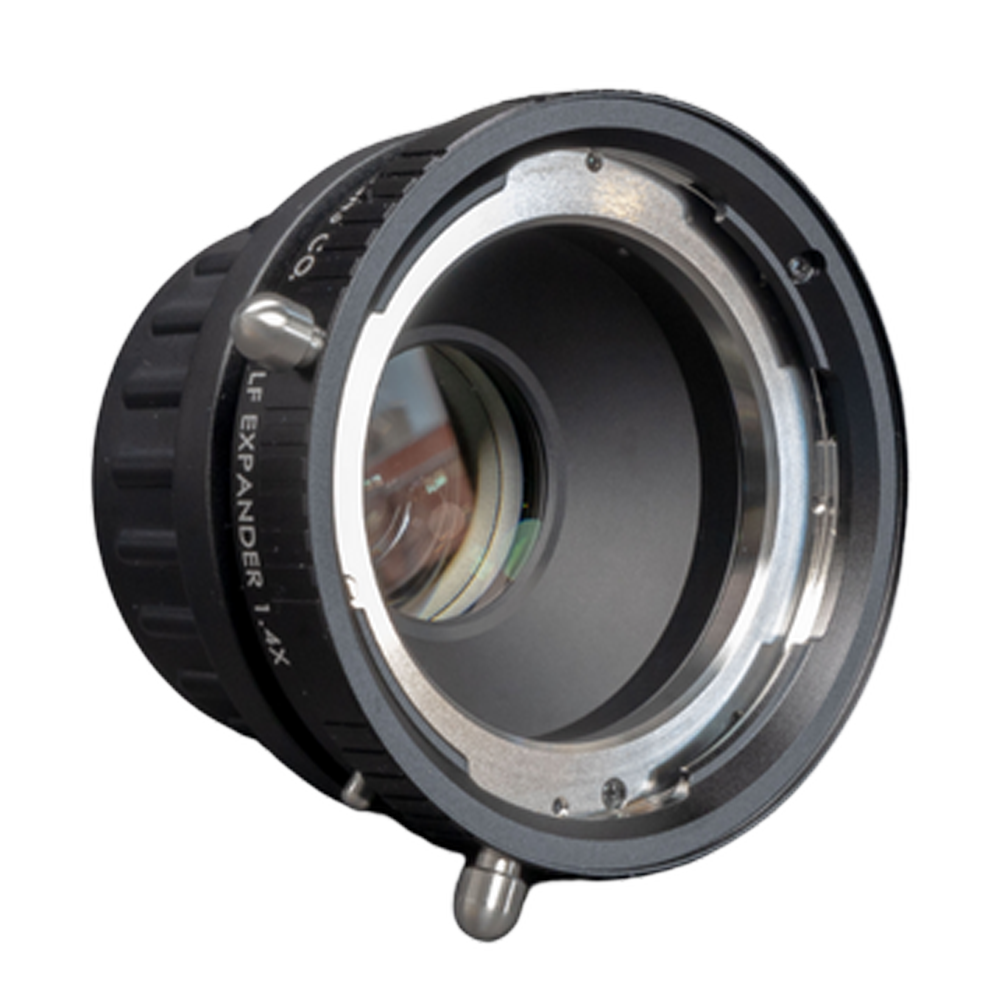

Atlas 1.4x LF Expander

The Atlas LF Expander allows Orion Series lenses to provide 36mm x 24mm full-frame coverage. The 1.4x expansion offers a new creative freedom with a stylistic falloff when compared to the 1.6x LF Extender.

Excellent with ARRI LF, Sony VENICE, RED V-Raptor and other full-frame, Vistavision, and large-format camera sensors.
Price $2,499.00
background image
Key Features
  • • 1.4x magnification
  • • 1 stop light loss
  • • PL mount in, PL mount out
  • • Index-marked adjustable back focus for optimal lens performance
  • • Back focus can be used for creative lens tuning depending on your lens
  • • Includes clearance check gauge for rear element
  • • Not compatible with EF mount

Compatible with all Orion Series Lenses 21mm - 100mm, as well as a variety of other zooms and primes.

To confirm whether our 1.4x Expander is compatible with your lens, use this Atlas printable clearance check gauge. If your lens' rear element clears the gauge, your lens should work with our 1.4x Expander. However, physical fitment does not guarantee perfect optical performance, which is dependent on the optical design of your lens.

If you're unsure if your lens will work with our 1.4x Expander, please email for assistance.

Equivalent Focal Lengths

When using the LF Expander with our Orion Series:

• Orion 21mm + 1.4x expander = ~29mm
• Orion 25mm + 1.4x expander = ~35mm
• Orion 32mm + 1.4x expander = ~45mm
• Orion 40mm + 1.4x expander = ~56mm
• Orion 50mm + 1.4x expander = ~70mm
• Orion 65mm + 1.4x expander = ~91mm
• Orion 80mm + 1.4x expander = ~112mm
• Orion 100mm + 1.4x expander = ~140mm

The 1.4x LF Expander allows our Orion Series lenses to cover Full Frame (36mmx24mm) sensors with full anamorphic coverage and with light loss of only 1 stop. We include a handy check gauge with each expander to help you ensure the rear element/cone of the lens will not interfere with the expander optics.

If used with 35mm format (non FF/LF sensor), it extends your lenses by 1.4x (100 becomes 140, 80 becomes 112, etc.)

Optimized for Atlas Orion Series lenses but compatible with other lenses as well.

For more coverage options, please check out the Atlas 1.6x LF Extender.


1.4x Expander vs 1.6x LF Extender comparison

DP: Jon Pears

Filmed on

Orion 21mm & 25mm + RED V-Raptor
